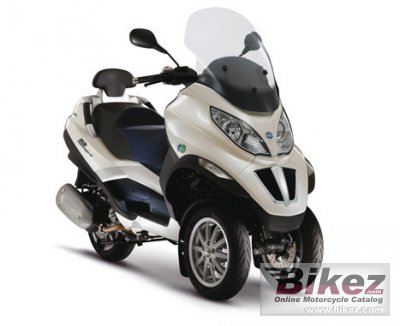

2017 Piaggio MP3 Hybrid 300ie Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 Piaggio MP3 Hybrid 300ie.

Basic Specs

Year2017
MakePiaggio
ModelPiaggio MP3 Hybrid 300ie
Cost

Engine

Displacement278.00 ccm (16.96 cubic inches)
Type3.5 HP electrcic engine, permanent magnets synchronous brushless
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke75.0 x 63.0 mm (3.0 x 2.5 inches)
Valves/Cylinder
FuelingInjection
IgnitionDigital electronic inductive ignition
ExhaustCatalytic silencer
LubricationWet sump
CoolingLiquid

Drivetrain

GearboxAutomatic
Final DriveBelt
ClutchAutomatic dry centrifugal
DrivelineTwist-and-go CVT with torque server

Performance

Horespower25.00 HP (18.2 kW)
Torque27.50 Nm (2.8 kgf-m or 20.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity12.00 litres (3.17 gallons)
Emissions

Chassis

Frame TypeDouble cradle in high resistance steel piping
Rake
Trail
Front SuspensionFour aluminium arms that support two steering pipes
Front Travel
Rear SuspensionTwo dual action hydraulic shock absorbers with adjustable spring preload
Rear Travel
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,350 mm (53.1 inches)
Total Length2,140 mm (84.3 inches)
Total Width
Ground Clearance
Wheelbase
Dry Weight
Wet Weight257.0 kg (566.6 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-12
Rear Tire/Tyre140/60-14
Front BrakesSingle disc. Floating discs. Two-piston calipers.
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Piaggio MP3 Hybrid 300ie. This Scooter model is powered by a 3.5 HP electrcic engine, permanent magnets synchronous brushless Single cylinder, four-stroke engine with 278.00 ccm (16.96 cubic inches) of actual displacement before compression. Fueling is metered via Injection allowing this machine to produce its 25.00 HP (18.2 kW) horsepower and 27.50 Nm (2.8 kgf-m or 20.3 ft.lbs) torque. According to our records engine heat of the Piaggio MP3 Hybrid 300ie is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-12 and the rear is 140/60-14 . The entire package is supported by the frame, Double cradle in high resistance steel piping. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Floating discs. Two-piston calipers. front brakes and Single disc rear brakes. The Piaggio MP3 Hybrid 300ie was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Two front wheels.
