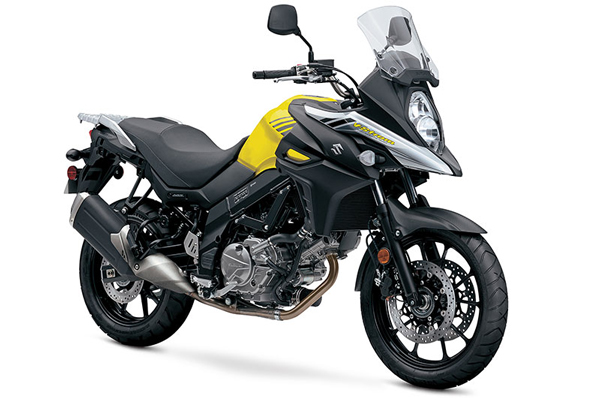

2017 Suzuki V-Strom 650 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2017 Suzuki V-Strom 650.

Basic Specs

Year2017
MakeSuzuki
ModelSuzuki V-Strom 650
Cost

Engine

Displacement645.00 ccm (39.36 cubic inches)
Type90-degree V-Twin
DetailsV2, four-stroke
Max RPM
Compression11.2:1
Bore/Stroke81.0 x 62.6 mm (3.2 x 2.5 inches)
Valves/Cylinder
FuelingInjection
IgnitionElectronic ignition
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
DrivelineChain, DID525V8, 118 links

Performance

Horespower69.00 HP (50.4 kW)
Torque69.00 Nm (7.0 kgf-m or 50.9 ft.lbs)
Top Speed185.0 km/h (115.0 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity20.06 litres (5.30 gallons)
Emissions

Chassis

Frame TypeTwin-spar aluminum-alloy frame
Rake
Trail
Front SuspensionTelescopic, coil spring, oil damped
Front Travel150 mm (5.9 inches)
Rear SuspensionLink type, coil spring, oil damped
Rear Travel160 mm (6.3 inches)
Seat
Seat Height830 mm (32.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,275 mm (89.6 inches)
Total Width
Ground Clearance175 mm (6.9 inches)
Wheelbase1,560 mm (61.4 inches)
Dry Weight213.0 kg (469.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre110/80-19
Rear Tire/Tyre150/70-17
Front BrakesDouble disc. Tokico 2-piston calipers
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. Nissin, 1-piston
Rear Brake Diameter260 mm (10.2 inches)
WheelsTen-spoke cast wheels. Bridgestone BATTLAX tyres.

Comments

It appears you're interested in specifications for the Suzuki V-Strom 650. This Super motard model is powered by a 90-degree V-Twin V2, four-stroke engine with 645.00 ccm (39.36 cubic inches) of actual displacement before 11.2:1 compression. Fueling is metered via Injection allowing this machine to produce its 69.00 HP (50.4 kW) horsepower and 69.00 Nm (7.0 kgf-m or 50.9 ft.lbs) torque. According to our records engine heat of the Suzuki V-Strom 650 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 110/80-19 and the rear is 150/70-17 . The entire package is supported by the frame, Twin-spar aluminum-alloy frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Tokico 2-piston calipers front brakes and Single disc. Nissin, 1-piston rear brakes. The Suzuki V-Strom 650 was launched in 2017, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

3-way height-adjustable windscreen.
