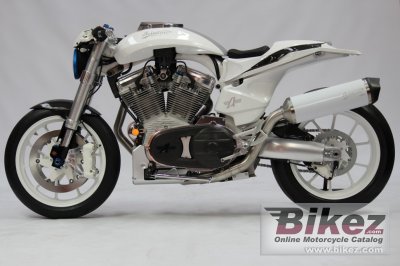

These are the known mechanical and performance specifications for your 2018 Avinton Deluxe.
Basic Specs
Engine
Displacement1647.00 ccm (100.50 cubic inches)
TypeS and S V-Twin at 45 degree.
DetailsV2, four-stroke
Max RPM
Compression10.3:1
Bore/Stroke101.6 x 101.0 mm (4.0 x 4.0 inches)
Valves/Cylinder2
FuelingCarburettor. Keihin FCR 46mm/diam. carburator with flat valve; air intake butterflies managed electronically
IgnitionCDI
ExhaustArrow Carbon silencer
LubricationDry sump
CoolingOil & air
Drivetrain
Gearbox5-speed
Final DriveChain
Clutch10 dry disks with pressure diaphragms
DrivelineKevlar belt primary
Performance
Horespower120.00 HP (87.6 kW)
Torque168.00 Nm (17.1 kgf-m or 123.9 ft.lbs)
Top Speed262.0 km/h (162.8 mph)
Fuel Economy & Polution
Fuel Consumption5.40 litres/100 km (18.5 km/l or 43.56 mpg)
Fuel Capacity13.00 litres (3.43 gallons)
Emissions125.3 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeTubular with suspended engine, oil circuit integrated in the frame
Rake22.0°
Trail85 mm (3.3 inches)
Front SuspensionInverted adjustable oversized Ceriani fork
Front Travel100 mm (3.9 inches)
Rear SuspensionSachs monoshock
Rear Travel125 mm (4.9 inches)
SeatSolo seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,380 mm (54.3 inches)
Dry Weight175.0 kg (385.8 pounds)
Wet Weight192.0 kg (423.3 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-17
Rear Tire/Tyre180/55-17
Front BrakesSingle disc. Beringer 6 pistons caliper
Front Brake Diameter
Rear BrakesSingle disc. Beringer
Rear Brake Diameter
WheelsMarchesini machined aluminium
Comments
French brand.
