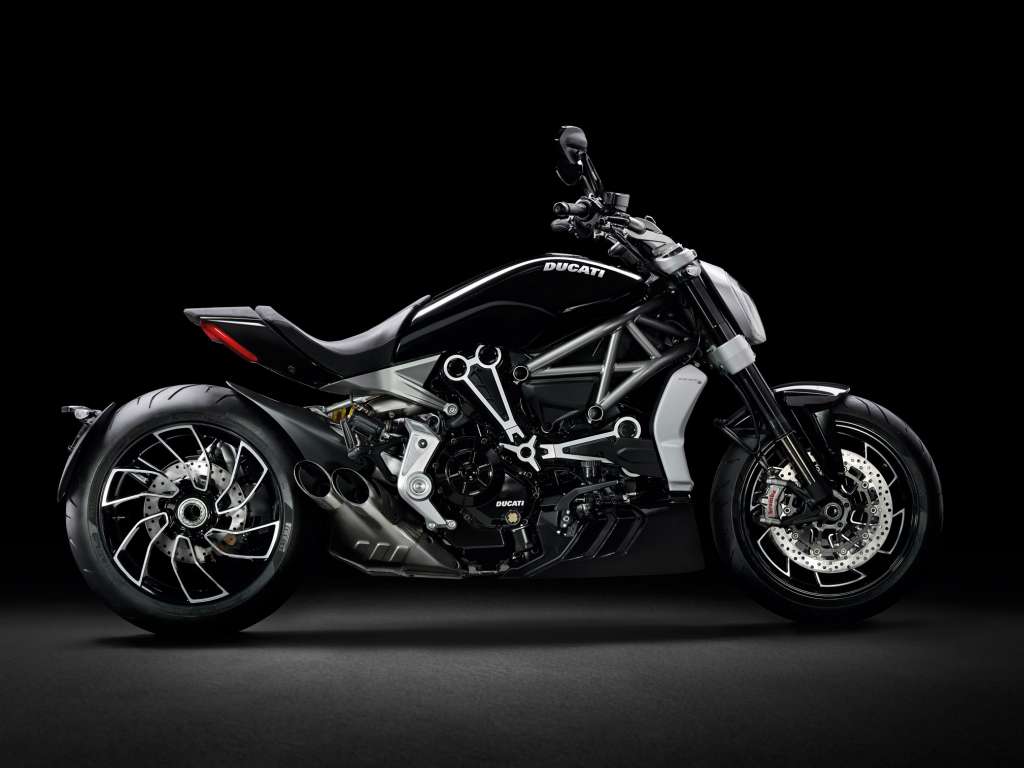

2018 Ducati XDiavel Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2018 Ducati XDiavel.

Basic Specs

Year2018
MakeDucati
ModelDucati XDiavel
Cost

Engine

Displacement1262.00 ccm (77.01 cubic inches)
TypeDucati Testastretta DVT (Desmodromic Variable Timing) engine
DetailsV2, four-stroke
Max RPM
Compression13.0:1
Bore/Stroke106.0 x 71.5 mm (4.2 x 2.8 inches)
Valves/Cylinder4
FuelingInjection. Bosch fuel injection system. Full ride-by-wire system.
IgnitionDual spark
ExhaustStainless steel exhaust and muffler with dual oval exits
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchSlipper and self-servo wet multiplate clutch with hydraulic control.
Driveline

Performance

Horespower152.00 HP (110.9 kW)
Torque126.00 Nm (12.8 kgf-m or 92.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame TypeTubular steel trellis
Rake30.0°
Trail130 mm (5.1 inches)
Front SuspensionAdjustable usd forks
Front Travel120 mm (4.7 inches)
Rear SuspensionSingle shock absorber, Adjustable preload and rebound
Rear Travel110 mm (4.3 inches)
SeatDual seat
Seat Height755 mm (29.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,235 mm (88.0 inches)
Total Width
Ground Clearance
Wheelbase1,615 mm (63.6 inches)
Dry Weight220.0 kg (485.0 pounds)
Wet Weight247.0 kg (544.5 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre240/45-ZR17
Front BrakesDouble disc. ABS. Floating discs. Four-piston calipers. Radially mounted.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. Floating disc. Two-piston calipers.
Rear Brake Diameter265 mm (10.4 inches)
WheelsLight alloy, Cast

Comments

It appears you're interested in specifications for the Ducati XDiavel. This Naked bike model is powered by a Ducati Testastretta DVT (Desmodromic Variable Timing) engine V2, four-stroke engine with 1262.00 ccm (77.01 cubic inches) of actual displacement before 13.0:1 compression. Fueling is metered via Injection. Bosch fuel injection system. Full ride-by-wire system. allowing this machine to produce its 152.00 HP (110.9 kW) horsepower and 126.00 Nm (12.8 kgf-m or 92.9 ft.lbs) torque. According to our records engine heat of the Ducati XDiavel is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 240/45-ZR17 . The entire package is supported by the frame, Tubular steel trellis. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Floating discs. Four-piston calipers. Radially mounted. front brakes and Single disc. ABS. Floating disc. Two-piston calipers. rear brakes. The Ducati XDiavel was launched in 2018, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
