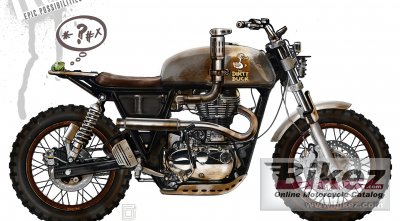

2018 Enfield Custombike Dirty Duck Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2018 Enfield Custombike Dirty Duck.

Basic Specs

Year2018
MakeEnfield
ModelEnfield Custombike Dirty Duck
Cost

Engine

Displacement535.00 ccm (32.65 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression8.5:1
Bore/Stroke87.0 x 90.0 mm (3.4 x 3.5 inches)
Valves/Cylinder
FuelingInjection
IgnitionDigital Electronic Ignition
Exhaust
LubricationWet sump
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchWet, multi-plate
Driveline

Performance

Horespower29.10 HP (21.2 kW)
Torque44.00 Nm (4.5 kgf-m or 32.5 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity13.50 litres (3.57 gallons)
Emissions

Chassis

Frame TypeTwin downtube cradle
Rake
Trail
Front SuspensionTelescopic, 41mm forks
Front Travel110 mm (4.3 inches)
Rear SuspensionPaioli. Twin gas charged shock absorbers with adjustable preload
Rear Travel80 mm (3.1 inches)
SeatDual seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,070 mm (42.1 inches)
Total Length2,060 mm (81.1 inches)
Total Width760 mm (29.9 inches)
Ground Clearance140 mm (5.5 inches)
Wheelbase1,360 mm (53.5 inches)
Dry Weight
Wet Weight198.0 kg (436.5 pounds)

Wheels & Brakes

Front Tire/Tyre100/90-18
Rear Tire/Tyre130/70-18
Front BrakesSingle disc. Floating discs. Brembo 2-piston floating caliper.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. Floating disc. Single-piston caliper.
Rear Brake Diameter240 mm (9.4 inches)
WheelsContinental TKC80 tires

Comments

It appears you're interested in specifications for the Enfield Custombike Dirty Duck. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 535.00 ccm (32.65 cubic inches) of actual displacement before 8.5:1 compression. Fueling is metered via Injection allowing this machine to produce its 29.10 HP (21.2 kW) horsepower and 44.00 Nm (4.5 kgf-m or 32.5 ft.lbs) torque. According to our records engine heat of the Enfield Custombike Dirty Duck is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 100/90-18 and the rear is 130/70-18 . The entire package is supported by the frame, Twin downtube cradle . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Floating discs. Brembo 2-piston floating caliper. front brakes and Single disc. Floating disc. Single-piston caliper. rear brakes. The Enfield Custombike Dirty Duck was launched in 2018, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

With a snorkel.
