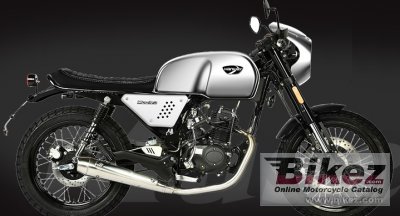

2018 Hanway Muscle 50 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2018 Hanway Muscle 50.

Basic Specs

Year2018
MakeHanway
ModelHanway Muscle 50
Cost

Engine

Displacement49.50 ccm (3.02 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke
Valves/Cylinder
FuelingInjection
IgnitionElectronic inductive
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox
Final DriveChain
Clutch
Driveline

Performance

Horespower2.82 HP (2.1 kW)
Torque2.70 Nm (0.3 kgf-m or 2.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.00 litres (4.49 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic forks
Front Travel
Rear SuspensionTwin coil spring, oil damped
Rear Travel
Seat
Seat Height720 mm (28.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,040 mm (40.9 inches)
Total Length2,000 mm (78.7 inches)
Total Width865 mm (34.1 inches)
Ground Clearance180 mm (7.1 inches)
Wheelbase1,355 mm (53.3 inches)
Dry Weight110.0 kg (242.5 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre110/70-17
Rear Tire/Tyre130/70-17
Front BrakesSingle disc
Front Brake Diameter298 mm (11.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Hanway Muscle 50. This Allround model is powered by a Single cylinder, four-stroke engine with 49.50 ccm (3.02 cubic inches) of actual displacement before compression. Fueling is metered via Injection allowing this machine to produce its 2.82 HP (2.1 kW) horsepower and 2.70 Nm (0.3 kgf-m or 2.0 ft.lbs) torque. According to our records engine heat of the Hanway Muscle 50 is moderated by Air. You'll need to get familiar with the transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 110/70-17 and the rear is 130/70-17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Hanway Muscle 50 was launched in 2018, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Chinese made bike.
