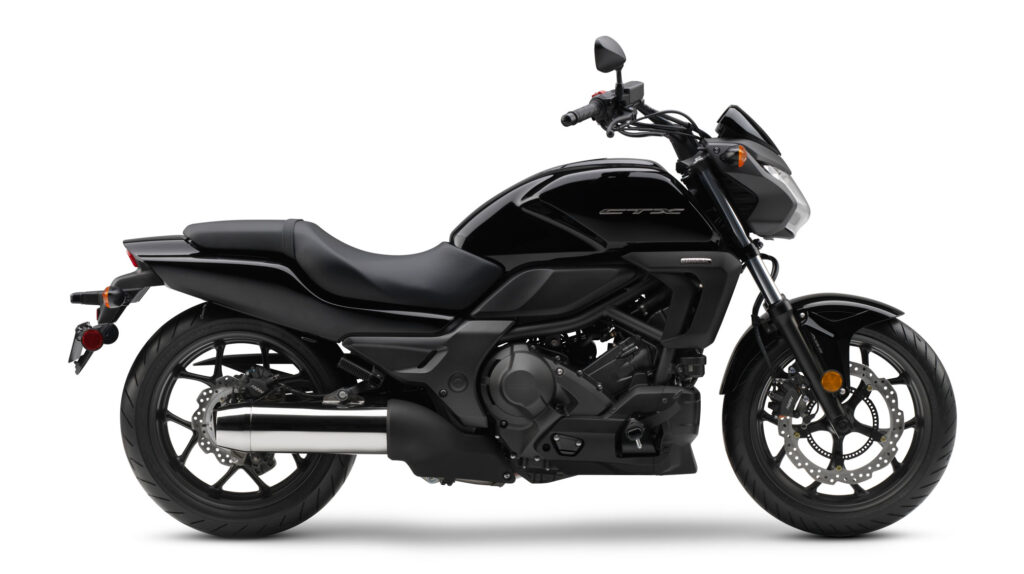

2018 Honda CTX700 DCT Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2018 Honda CTX700 DCT.

Basic Specs

Year2018
MakeHonda
ModelHonda CTX700 DCT
CostUS$ 8299. Prices depend on country, taxes, accessories, etc.

Engine

Displacement670.00 ccm (40.88 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression10.7:1
Bore/Stroke73.0 x 80.0 mm (2.9 x 3.1 inches)
Valves/Cylinder4
FuelingInjection. PGM-FI with 36mm throttle body
IgnitionDigital transistorized with electronic advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox400-speed
Final DriveChain
ClutchAutomatic
DrivelineAutomatic six speed with two modes and a manual mode

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption3.68 litres/100 km (27.2 km/l or 63.92 mpg)
Fuel Capacity12.00 litres (3.17 gallons)
Emissions85.4 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake27.7°
Trail114 mm (4.5 inches)
Front Suspension41mm fork
Front Travel107 mm (4.2 inches)
Rear SuspensionPro-Link single shock
Rear Travel109 mm (4.3 inches)
Seat
Seat Height719 mm (28.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,165 mm (45.9 inches)
Total Length2,255 mm (88.8 inches)
Total Width840 mm (33.1 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1,529 mm (60.2 inches)
Dry Weight
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre160/60-17
Front BrakesSingle disc. ABS. Two-piston calipers.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. Single-piston caliper.
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda CTX700 DCT. This Sport touring model is powered by a Twin, four-stroke engine with 670.00 ccm (40.88 cubic inches) of actual displacement before 10.7:1 compression. Fueling is metered via Injection. PGM-FI with 36mm throttle body allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda CTX700 DCT is moderated by Liquid. You'll need to get familiar with the 400-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 160/60-17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ABS. Two-piston calipers. front brakes and Single disc. ABS. Single-piston caliper. rear brakes. The Honda CTX700 DCT was launched in 2018, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: CTX700D
