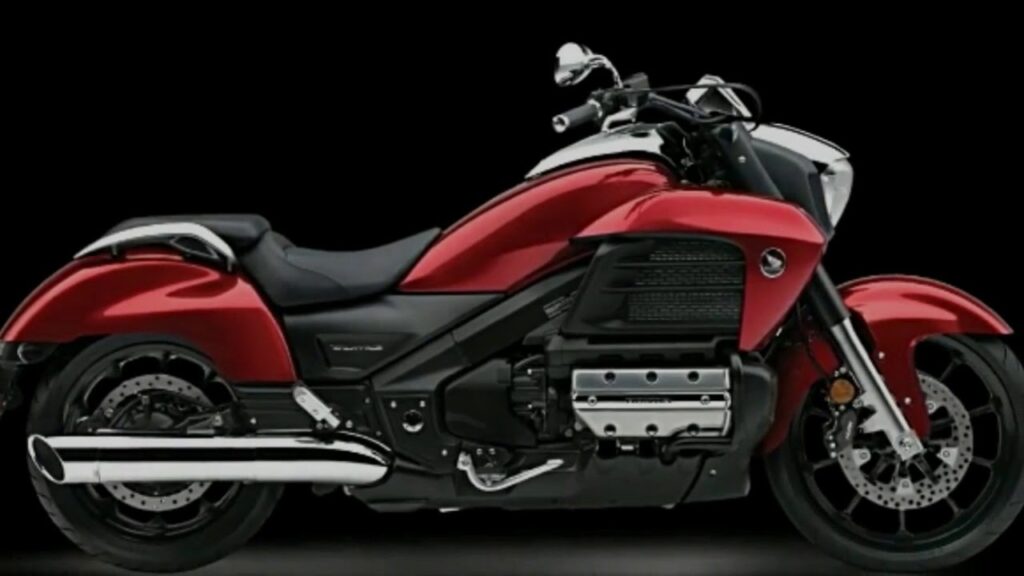

2018 Honda Gold Wing Valkyrie Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2018 Honda Gold Wing Valkyrie.

Basic Specs

Year2018
MakeHonda
ModelHonda Gold Wing Valkyrie
TypeCustom / cruiser
CostUS$ 17999. Prices depend on country, taxes, accessories, etc.
Service Manual
Classic Service Manual
Electric Service Manual

Engine

Displacement1832.00 ccm (111.79 cubic inches)
Type
DetailsSix cylinder boxer, four-stroke
Max RPM
Compression9.8:1
Bore/Stroke74.0 x 71.0 mm (2.9 x 2.8 inches)
Valves/Cylinder2
FuelingInjection. PGM-FI
IgnitionComputer-controlled digital with 3-D mapping
Exhaust
Lubrication
CoolingLiquid
Spark Plugs

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
ClutchMulti-plate with diaphragm spring in oil bath
Driveline
Shaft drive (cardan) Clutch Plates

Performance

Horespower
Torque
Top Speed
K&N Air Filter Slip-on Exhaust

Fuel Economy & Polution

Fuel Consumption5.74 litres/100 km (17.4 km/l or 40.98 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions133.2 CO2 g/km. (CO2 - Carbon dioxide emission)
Fuel Bottles & Cans

Chassis

Frame Type
Rake29.9°
Trail114 mm (4.5 inches)
Front Suspension45mm cartridge fork with anti-dive system
Front Travel122 mm (4.8 inches)
Rear SuspensionPro Arm® single-side swingarm with Pro-Link® single shock with remote-controlled spring preload adjustment
Rear Travel104 mm (4.1 inches)
Seat
Seat Height734 mm (28.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,704 mm (67.1 inches)
Dry Weight
Wet Weight341.0 kg (751.8 pounds)
Seats & Covers Lowering Kits Titanium

Wheels & Brakes

Front Tire/Tyre130/60-R19
Rear Tire/Tyre180/55-R17
Front BrakesDouble disc
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter316 mm (12.4 inches)
Wheels10-spoke cast aluminium
Front Brakes Pads Rear Brake Pads Front Tire Rear Tire

Comments

It appears you're interested in specifications for the Honda Gold Wing Valkyrie. This Custom / cruiser model is powered by a Six cylinder boxer, four-stroke engine with 1832.00 ccm (111.79 cubic inches) of actual displacement before 9.8:1 compression. Fueling is metered via Injection. PGM-FI allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda Gold Wing Valkyrie is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 130/60-R19 and the rear is 180/55-R17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Honda Gold Wing Valkyrie was launched in 2018, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: GL1800C
