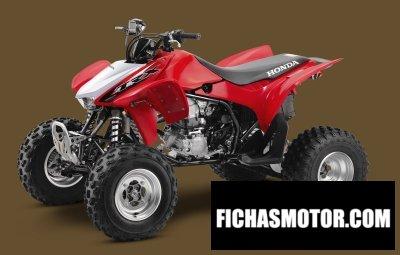

These are the known mechanical and performance specifications for your 2018 Honda TRX450R.
Basic Specs
Year2018
MakeHonda
ModelHonda TRX450R
TypeATV
CostUS$ 7799. Prices depend on country, taxes, accessories, etc.
Engine
Displacement450.00 ccm (27.46 cubic inches)
Type36mm intake valve (titanium), 30mm exhaust (steel)
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke96.0 x 62.0 mm (3.8 x 2.4 inches)
Valves/Cylinder4
FuelingCarburettor. Keihin 40mm flat-slide carburetor with Throttle Position Sensor (TPS)
IgnitionCD with electronic advance
Exhaust
LubricationTwin sump
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity10.22 litres (2.70 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionIndependent double-wishbone with Showa shocks, featuring adjustable spring-preload, rebound and compression-damping
Front Travel213 mm (8.4 inches)
Rear SuspensionPro-Link with single Showa shock featuring adjustable spring-preload, rebound- and compression damping
Rear Travel236 mm (9.3 inches)
Seat
Seat Height833 mm (32.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,100 mm (43.3 inches)
Total Length1,862 mm (73.3 inches)
Total Width1,176 mm (46.3 inches)
Ground Clearance112 mm (4.4 inches)
Wheelbase1,275 mm (50.2 inches)
Dry Weight
Wet Weight176.0 kg (388.0 pounds)
Wheels & Brakes
Front Tire/Tyre21/7-10
Rear Tire/Tyre20/10-9
Front BrakesDouble disc. Hydraulic. Two-piston calipers.
Front Brake Diameter174 mm (6.9 inches)
Rear BrakesSingle disc. Hydraulic. Single-piston caliper.
Rear Brake Diameter190 mm (7.5 inches)
Wheels
Comments
Model ID: TRX450ER
