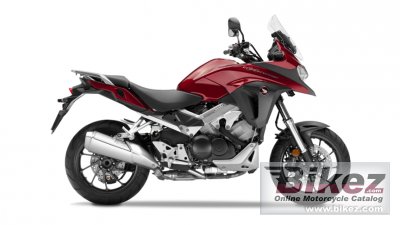

2018 Honda VFR800X Crossrunner Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2018 Honda VFR800X Crossrunner.

Basic Specs

Year2018
MakeHonda
ModelHonda VFR800X Crossrunner
Cost

Engine

Displacement782.00 ccm (47.72 cubic inches)
Type90 degree V-4
DetailsV4, four-stroke
Max RPM
Compression11.8:1
Bore/Stroke72.0 x 48.0 mm (2.8 x 1.9 inches)
Valves/Cylinder4
FuelingInjection. PGM-FI electronic fuel injection
IgnitionComputer-controlled digital transistorised with electronic advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet, multiplate with coil springs
DrivelineO-ring sealed chain

Performance

Horespower107.00 HP (78.1 kW)
Torque75.10 Nm (7.7 kgf-m or 55.4 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption4.43 litres/100 km (22.6 km/l or 53.10 mpg)
Fuel Capacity20.80 litres (5.50 gallons)
Emissions102.8 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeDiamond; aluminium twin-spar; pivotless
Rake26.5°
Trail103 mm (4.1 inches)
Front Suspension43mm HMAS cartridge-type telescopic fork with stepless preload and ten DF adjustment, 108mm axle travel
Front Travel145 mm (5.7 inches)
Rear SuspensionPro-Link with gas-charged HMAS damper, 7-step (stepless remote-controlled hydraulic) preload and stepless rebound damping adjustment, 120mm axle travel
Rear Travel148 mm (5.8 inches)
Seat
Seat Height815 mm (32.1 inches) If adjustable, lowest setting.
Alt. Seat Height835 mm (32.9 inches) If adjustable, highest setting.
Total Height1,360 mm (53.5 inches)
Total Length2,190 mm (86.2 inches)
Total Width870 mm (34.3 inches)
Ground Clearance165 mm (6.5 inches)
Wheelbase1,475 mm (58.1 inches)
Dry Weight
Wet Weight242.0 kg (533.5 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. ABS. Floating discs. Hydraulic. Four-piston calipers.
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. ABS. Hydraulic. Two-piston calipers.
Rear Brake Diameter256 mm (10.1 inches)
Wheels10-spoke diecast aluminium

Comments

It appears you're interested in specifications for the Honda VFR800X Crossrunner. This Sport touring model is powered by a 90 degree V-4 V4, four-stroke engine with 782.00 ccm (47.72 cubic inches) of actual displacement before 11.8:1 compression. Fueling is metered via Injection. PGM-FI electronic fuel injection allowing this machine to produce its 107.00 HP (78.1 kW) horsepower and 75.10 Nm (7.7 kgf-m or 55.4 ft.lbs) torque. According to our records engine heat of the Honda VFR800X Crossrunner is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Diamond; aluminium twin-spar; pivotless. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Floating discs. Hydraulic. Four-piston calipers. front brakes and Single disc. ABS. Hydraulic. Two-piston calipers. rear brakes. The Honda VFR800X Crossrunner was launched in 2018, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
