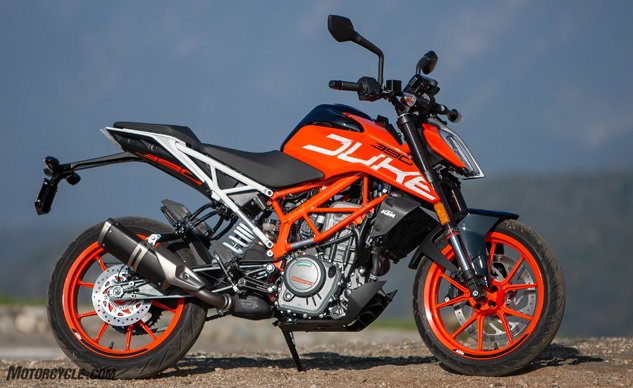

2018 KTM 390 Duke Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2018 KTM 390 Duke.

Basic Specs

Year2018
MakeKTM
ModelKTM 390 Duke
Cost

Engine

Displacement373.20 ccm (22.77 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke89.0 x 60.0 mm (3.5 x 2.4 inches)
Valves/Cylinder4
FuelingInjection
IgnitionBosch EMS
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet multi-disc clutch / mechanically operated
Driveline

Performance

Horespower44.00 HP (32.1 kW)
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity13.40 litres (3.54 gallons)
Emissions

Chassis

Frame TypeSteel trellis frame, powder coated
Rake24.0°
Trail
Front SuspensionWP upside-down Ø 43 mm
Front Travel150 mm (5.9 inches)
Rear SuspensionWP monoshock
Rear Travel150 mm (5.9 inches)
Seat
Seat Height830 mm (32.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance185 mm (7.3 inches)
Wheelbase1,357 mm (53.4 inches)
Dry Weight149.0 kg (328.5 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre110/90-17
Rear Tire/Tyre150/60-17
Front BrakesDouble disc. ABS. Four-piston radial fixed calliper.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. ABS. Single-piston floating calliper.
Rear Brake Diameter230 mm (9.1 inches)
WheelsAlloy wheels

Comments

It appears you're interested in specifications for the KTM 390 Duke. This Naked bike model is powered by a Single cylinder, four-stroke engine with 373.20 ccm (22.77 cubic inches) of actual displacement before compression. Fueling is metered via Injection allowing this machine to produce its 44.00 HP (32.1 kW) horsepower and torque. According to our records engine heat of the KTM 390 Duke is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 110/90-17 and the rear is 150/60-17 . The entire package is supported by the frame, Steel trellis frame, powder coated. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Four-piston radial fixed calliper. front brakes and Single disc. ABS. Single-piston floating calliper. rear brakes. The KTM 390 Duke was launched in 2018, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
