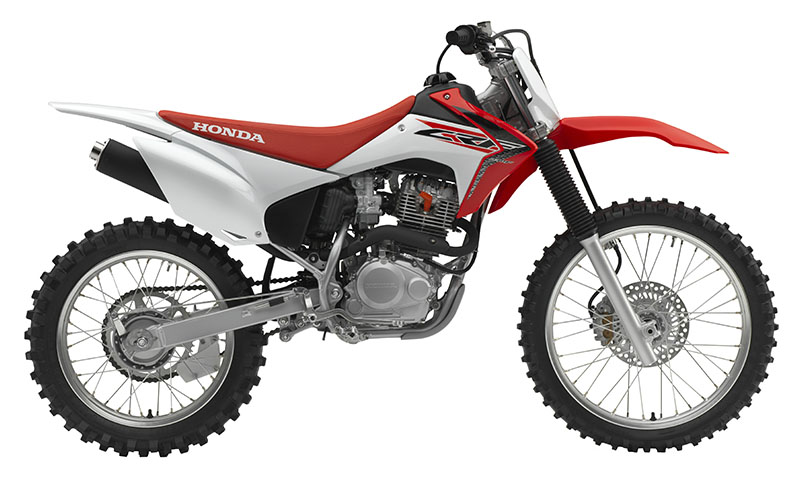

These are the known mechanical and performance specifications for your 2019 Honda CRF230F.
Basic Specs
Engine
Displacement223.00 ccm (13.61 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke65.5 x 66.2 mm (2.6 x 2.6 inches)
Valves/Cylinder2
FuelingCarburettor. 26mm piston-valve carburetor
IgnitionCD
Exhaust
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveChain
Clutch
Driveline#520 O-ring-sealed chain; 13T/50T
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.00 litres (1.85 gallons)
Emissions
Chassis
Frame Type
Rake26.5°
Trail111 mm (4.4 inches)
Front Suspension37mm leading-axle Showa® fork
Front Travel241 mm (9.5 inches)
Rear SuspensionPro-Link® Showa single shock with spring-preload adjustability
Rear Travel229 mm (9.0 inches)
Seat
Seat Height878 mm (34.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,190 mm (46.9 inches)
Total Length2,059 mm (81.1 inches)
Total Width801 mm (31.5 inches)
Ground Clearance305 mm (12.0 inches)
Wheelbase1,372 mm (54.0 inches)
Dry Weight
Wet Weight113.0 kg (249.1 pounds)
Wheels & Brakes
Front Tire/Tyre80/100-21
Rear Tire/Tyre100/100-18
Front BrakesSingle disc
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter223 mm (8.8 inches)
Wheels
Comments
Model ID: CRF230F
