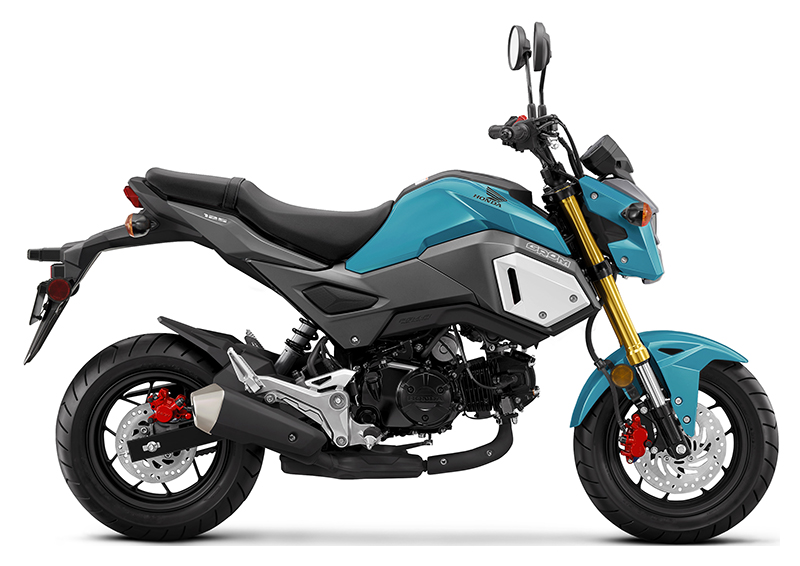

2019 Honda Grom Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2019 Honda Grom.

Basic Specs

Year2019
MakeHonda
ModelHonda Grom
TypeSport
CostUS$ 3399. Prices depend on country, taxes, accessories, etc.
Service Manual
Classic Service Manual
Electric Service Manual

Engine

Displacement124.90 ccm (7.62 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.3:1
Bore/Stroke52.4 x 57.9 mm (2.1 x 2.3 inches)
Valves/Cylinder2
FuelingInjection. PGM-FI with automatic enrichment
IgnitionElectronic
Exhaust
Lubrication
CoolingAir
Spark Plugs

Drivetrain

Gearbox4-speed
Final DriveChain
ClutchMultiplate wet
Driveline
Chain Clutch Plates

Performance

Horespower
Torque
Top Speed
K&N Air Filter Slip-on Exhaust

Fuel Economy & Polution

Fuel Consumption1.76 litres/100 km (56.8 km/l or 133.65 mpg)
Fuel Capacity5.00 litres (1.32 gallons)
Emissions40.8 CO2 g/km. (CO2 - Carbon dioxide emission)
Fuel Bottles & Cans

Chassis

Frame Type
Rake25.0°
Trail81 mm (3.2 inches)
Front Suspension31mm inverted fork
Front Travel99 mm (3.9 inches)
Rear SuspensionSingle shock with steel box-section swingarm
Rear Travel104 mm (4.1 inches)
Seat
Seat Height762 mm (30.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height988 mm (38.9 inches)
Total Length1,760 mm (69.3 inches)
Total Width754 mm (29.7 inches)
Ground Clearance165 mm (6.5 inches)
Wheelbase1,199 mm (47.2 inches)
Dry Weight
Wet Weight103.9 kg (229.0 pounds)
Seats & Covers Lowering Kits Titanium

Wheels & Brakes

Front Tire/Tyre120/70-12
Rear Tire/Tyre130/70-12
Front BrakesSingle disc. Hydraulic. Two-piston calipers.
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesSingle disc. Hydraulic. Single-piston caliper.
Rear Brake Diameter190 mm (7.5 inches)
Wheels
Front Brakes Pads Rear Brake Pads Front Tire Rear Tire

Comments

It appears you're interested in specifications for the Honda Grom. This Sport model is powered by a Single cylinder, four-stroke engine with 124.90 ccm (7.62 cubic inches) of actual displacement before 9.3:1 compression. Fueling is metered via Injection. PGM-FI with automatic enrichment allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda Grom is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-12 and the rear is 130/70-12 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Hydraulic. Two-piston calipers. front brakes and Single disc. Hydraulic. Single-piston caliper. rear brakes. The Honda Grom was launched in 2019, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: Grom125
