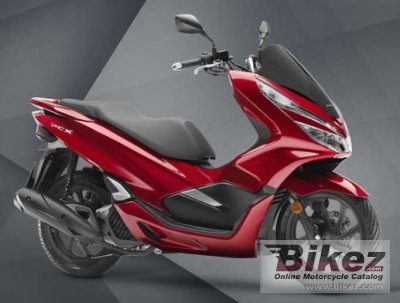

2019 Honda PCX 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2019 Honda PCX 125 .

Basic Specs

Year2019
MakeHonda
ModelHonda PCX 125
Cost

Engine

Displacement125.00 ccm (7.63 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.6:1
Bore/Stroke52.4 x 57.9 mm (2.1 x 2.3 inches)
Valves/Cylinder2
FuelingInjection. PGM-FI with automatic enrichment
IgnitionFull transistorized ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

GearboxAutomatic
Final DriveBelt
ClutchAutomatic, centrifugal, dry type
DrivelineHonda V-Matic belt-converter automatic transmission

Performance

Horespower12.07 HP (8.8 kW)
Torque11.80 Nm (1.2 kgf-m or 8.7 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption2.10 litres/100 km (47.6 km/l or 112.01 mpg)
Fuel Capacity8.00 litres (2.11 gallons)
Emissions48.7 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTubular Steel Underbone
Rake27.0°
Trail86 mm (3.4 inches)
Front Suspension31mm telescopic for
Front Travel100 mm (3.9 inches)
Rear SuspensionTwin suspension aluminium swingarm
Rear Travel75 mm (3.0 inches)
Seat
Seat Height764 mm (30.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,107 mm (43.6 inches)
Total Length1,923 mm (75.7 inches)
Total Width745 mm (29.3 inches)
Ground Clearance135 mm (5.3 inches)
Wheelbase1,313 mm (51.7 inches)
Dry Weight
Wet Weight130.0 kg (286.6 pounds)

Wheels & Brakes

Front Tire/Tyre90/90-14
Rear Tire/Tyre100/90-14
Front BrakesSingle disc. Hydraulic.
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
Wheels5-spoke cast aluminium

Comments

It appears you're interested in specifications for the Honda PCX 125 . This Scooter model is powered by a Single cylinder, four-stroke engine with 125.00 ccm (7.63 cubic inches) of actual displacement before 10.6:1 compression. Fueling is metered via Injection. PGM-FI with automatic enrichment allowing this machine to produce its 12.07 HP (8.8 kW) horsepower and 11.80 Nm (1.2 kgf-m or 8.7 ft.lbs) torque. According to our records engine heat of the Honda PCX 125 is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 90/90-14 and the rear is 100/90-14 . The entire package is supported by the frame, Tubular Steel Underbone. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Hydraulic. front brakes and Expanding brake (drum brake) rear brakes. The Honda PCX 125 was launched in 2019, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model Iid: PCX150
