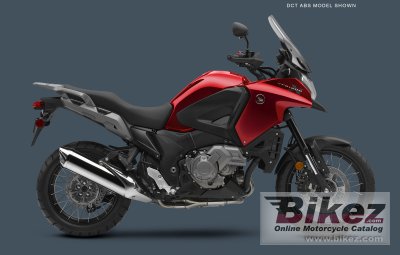

2019 Honda VFR1200X Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2019 Honda VFR1200X.

Basic Specs

ModelHonda VFR1200X


Displacement1237.00 ccm (75.48 cubic inches)
Type76 degree cyclinder angle
DetailsV4, four-stroke
Bore/Stroke81.0 x 60.0 mm (3.2 x 2.4 inches)
FuelingInjection. PGM-FI


Final DriveShaft drive (cardan)
ClutchWet multiplate
DrivelineSix-speed manual transmission or automatic.


Horespower127.40 HP (93.0 kW)
Torque126.00 Nm (12.8 kgf-m or 92.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption6.20 litres/100 km (16.1 km/l or 37.94 mpg)
Fuel Capacity21.50 litres (5.68 gallons)
Emissions143.8 CO2 g/km. (CO2 - Carbon dioxide emission)


Frame TypeDiamond aluminium twin-spar
Trail107 mm (4.2 inches)
Front Suspension43mm inverted telescopic forks with hydraulic damping, preload and rebound damping adjustment
Front Travel
Rear SuspensionPro-Link with gas-charged damper, preload and stepless rebound damping adjustment
Rear Travel
Seat Height850 mm (33.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,335 mm (52.6 inches)
Total Length2,285 mm (90.0 inches)
Total Width915 mm (36.0 inches)
Ground Clearance180 mm (7.1 inches)
Wheelbase1,595 mm (62.8 inches)
Dry Weight
Wet Weight277.0 kg (610.7 pounds)

Wheels & Brakes

Front Tire/Tyre110/80-R19
Rear Tire/Tyre150/70-R17
Front BrakesDouble disc. Combined ABS
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. Combined ABS
Rear Brake Diameter276 mm (10.9 inches)
WheelsWire spoked


It appears you're interested in specifications for the Honda VFR1200X. This Sport touring model is powered by a 76 degree cyclinder angle V4, four-stroke engine with 1237.00 ccm (75.48 cubic inches) of actual displacement before 12.0:1 compression. Fueling is metered via Injection. PGM-FI allowing this machine to produce its 127.40 HP (93.0 kW) horsepower and 126.00 Nm (12.8 kgf-m or 92.9 ft.lbs) torque. According to our records engine heat of the Honda VFR1200X is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 110/80-R19 and the rear is 150/70-R17 . The entire package is supported by the frame, Diamond aluminium twin-spar. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Combined ABS front brakes and Single disc. Combined ABS rear brakes. The Honda VFR1200X was launched in 2019, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Traction Control System. Windscreen. Sometimes called VFR1200X Crosstourer.
