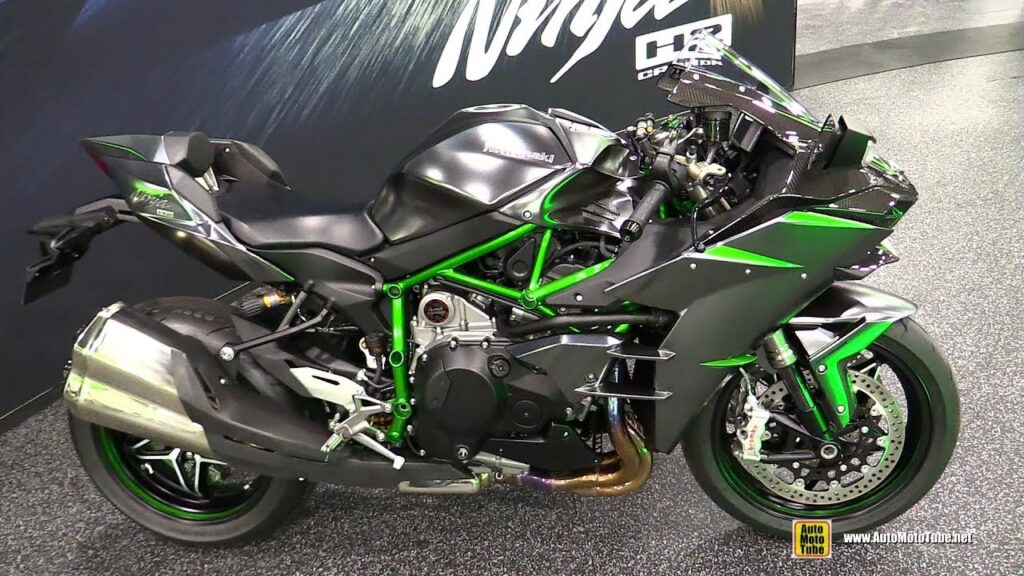

These are the known mechanical and performance specifications for your 2019 Kawasaki Ninja H2 Carbon.
Basic Specs
Engine
Displacement998.00 ccm (60.90 cubic inches)
TypeKawasaki supercharger intake system
DetailsIn-line four, four-stroke
Max RPM
Compression8.5:1
Bore/Stroke76.0 x 55.0 mm (3.0 x 2.2 inches)
Valves/Cylinder4
FuelingInjection. Centrifugal-type supercharger
IgnitionDigital
Exhaust
LubricationForced lubrication, wet sump with oil cooler
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchWet multi-disc, manual
DrivelineSealed chain
Performance
Horespower227.97 HP (166.4 kW)
Torque141.70 Nm (14.4 kgf-m or 104.5 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption8.53 litres/100 km (11.7 km/l or 27.58 mpg)
Fuel Capacity17.00 litres (4.49 gallons)
Emissions197.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeTrellis, high-tensile steel with Swingarm Mounting Plate
Rake24.5°
Trail103 mm (4.1 inches)
Front Suspension43 mm inverted fork with rebound and compression damping, spring preload adjustability and top-out springs
Front Travel119 mm (4.7 inches)
Rear SuspensionUni-Trak, Öhlins TTX36 gas-charged shock with piggyback reservoir, compression damping, rebound damping, preload adjustability and top-out spring
Rear Travel135 mm (5.3 inches)
Seat
Seat Height825 mm (32.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,125 mm (44.3 inches)
Total Length2,085 mm (82.1 inches)
Total Width770 mm (30.3 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1,455 mm (57.3 inches)
Dry Weight
Wet Weight238.1 kg (524.8 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre200/55-ZR17
Front BrakesDouble disc. Dual radial-mount, opposed 4-piston calipers, dual semi-floating discs, KIBS ABS
Front Brake Diameter330 mm (13.0 inches)
Rear BrakesSingle disc. Brembo, opposed 2-piston
Rear Brake Diameter250 mm (9.8 inches)
Wheels
