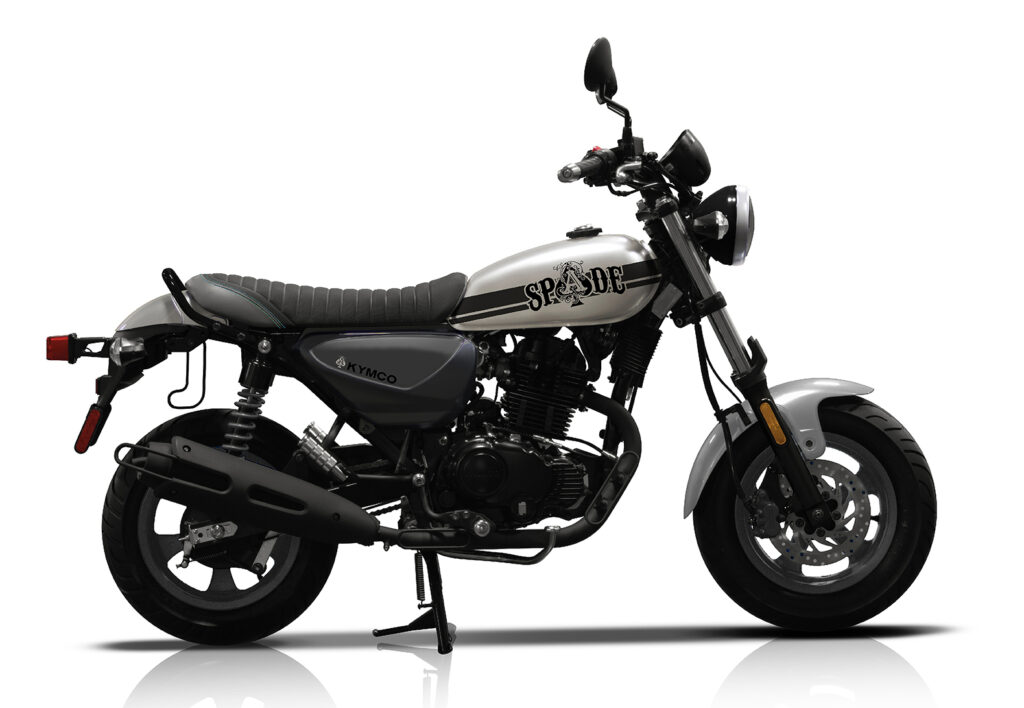

2019 Kymco Spade 150 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2019 Kymco Spade 150.

Basic Specs

Year2019
MakeKymco
ModelKymco Spade 150
Cost

Engine

Displacement149.40 ccm (9.12 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke69.0 x 49.5 mm (2.7 x 1.9 inches)
Valves/Cylinder4
FuelingInjection
Ignition
ExhaustBlack
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower12.50 HP (9.1 kW)
Torque10.85 Nm (1.1 kgf-m or 8.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption2.48 litres/100 km (40.3 km/l or 94.85 mpg)
Fuel Capacity6.06 litres (1.60 gallons)
Emissions57.5 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeSteel
Rake25.0°
Trail84 mm (3.3 inches)
Front SuspensionTelescopic forks
Front Travel
Rear SuspensionDual shocks
Rear Travel
Seat
Seat Height711 mm (28.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,029 mm (40.5 inches)
Total Length1,753 mm (69.0 inches)
Total Width765 mm (30.1 inches)
Ground Clearance
Wheelbase1,199 mm (47.2 inches)
Dry Weight112.8 kg (248.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/80-12
Rear Tire/Tyre130/70-12
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
WheelsBlack, 6-spoke

Comments

It appears you're interested in specifications for the Kymco Spade 150. This Allround model is powered by a Single cylinder, four-stroke engine with 149.40 ccm (9.12 cubic inches) of actual displacement before compression. Fueling is metered via Injection allowing this machine to produce its 12.50 HP (9.1 kW) horsepower and 10.85 Nm (1.1 kgf-m or 8.0 ft.lbs) torque. According to our records engine heat of the Kymco Spade 150 is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/80-12 and the rear is 130/70-12 . The entire package is supported by the frame, Steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Kymco Spade 150 was launched in 2019, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Kymco is made by Kwang Yang Motor Company, Taiwan.
