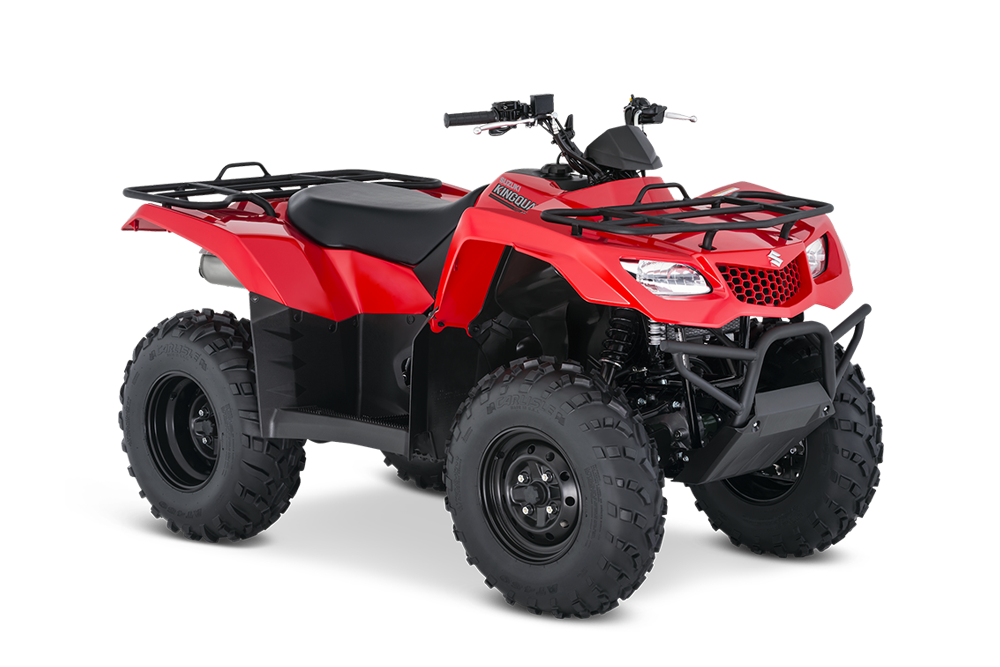

These are the known mechanical and performance specifications for your 2019 Suzuki KingQuad 400FSi.
Basic Specs
Year2019
MakeSuzuki
ModelSuzuki KingQuad 400FSi
TypeATV
CostUS$ 6499. Prices depend on country, taxes, accessories, etc.
Engine
Displacement376.00 ccm (22.94 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke82.0 x 71.2 mm (3.2 x 2.8 inches)
Valves/Cylinder
FuelingInjection
Ignition
Exhaust
LubricationWet sump
CoolingAir
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch.Dry shoe, automatic, centrifugal type
Driveline2WD, 4WD. Constant mesh, with high/low-range, and reverse.
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity16.00 litres (4.23 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionIndependent, double wishbone, oil-damped. Spring preloaded
Front Travel170 mm (6.7 inches)
Rear SuspensionSwingarm, coil-sprung, oil-damped
Rear Travel170 mm (6.7 inches)
Seat
Seat Height840 mm (33.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,220 mm (48.0 inches)
Total Length2,060 mm (81.1 inches)
Total Width1,145 mm (45.1 inches)
Ground Clearance250 mm (9.8 inches)
Wheelbase1,270 mm (50.0 inches)
Dry Weight
Wet Weight279.0 kg (615.1 pounds)
Wheels & Brakes
Front Tire/Tyre25/8-12
Rear Tire/Tyre25/10-12
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
Automotive-style DC power outlet on front fender.
