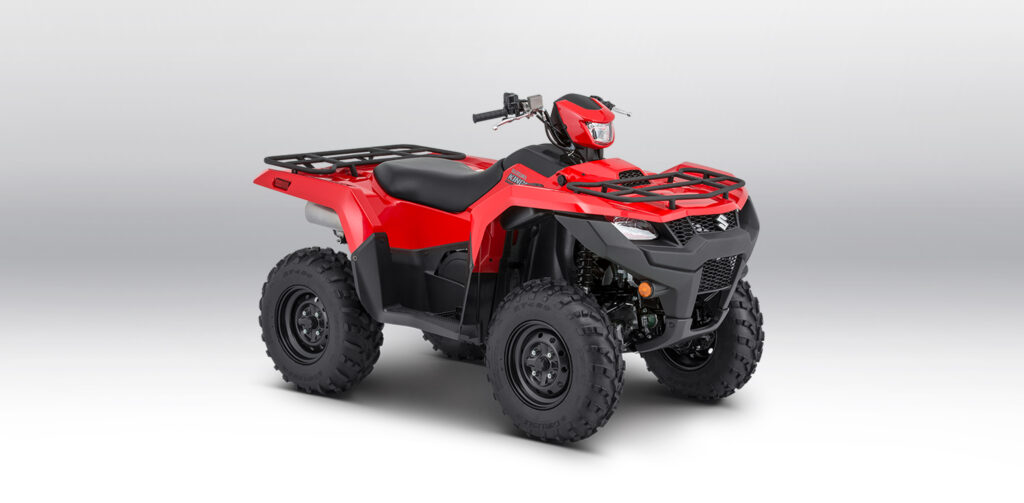

These are the known mechanical and performance specifications for your 2019 Suzuki KingQuad 750AXi.
Basic Specs
Year2019
MakeSuzuki
ModelSuzuki KingQuad 750AXi
TypeATV
CostUS$ 8799. Prices depend on country, taxes, accessories, etc.
Engine
Displacement722.00 ccm (44.06 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke104.0 x 85.0 mm (4.1 x 3.3 inches)
Valves/Cylinder4
FuelingInjection
IgnitionElectronic ignition
Exhaust
LubricationWet sump
CoolingLiquid
Drivetrain
Gearbox100-speed
Final DriveBelt
ClutchAutomatic, x 2 speed with reverse and front diff-locked 4WD
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity17.50 litres (4.62 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionIndependent, double wishbone, coil spring, oil damped with five-way preload adjustable shock absorbers
Front Travel180 mm (7.1 inches)
Rear SuspensionIndependent, double wishbone, coil spring, oil damped with five-way preload adjustable shock absorbers
Rear Travel201 mm (7.9 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,285 mm (50.6 inches)
Total Length2,150 mm (84.6 inches)
Total Width1,215 mm (47.8 inches)
Ground Clearance260 mm (10.2 inches)
Wheelbase1,280 mm (50.4 inches)
Dry Weight
Wet Weight320.0 kg (705.5 pounds)
Wheels & Brakes
Front Tire/Tyre25/8-12
Rear Tire/Tyre25/10-12
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesSealed multidisc
Rear Brake Diameter
Wheels2WD, 4WD and 4WD Differential Lock
Comments
Winch-ready mounts and wire conduit. Optional power steering (EPS).
