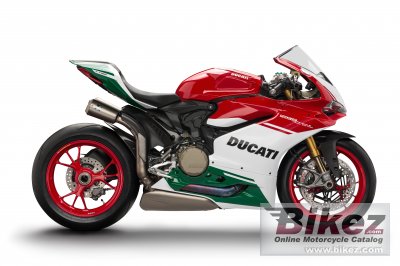

2020 Ducati 1299 Panigale R Final Edition Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Ducati 1299 Panigale R Final Edition.

Basic Specs

Ducati 1299 Panigale R Final Edition
Year2020
MakeDucati
ModelDucati 1299 Panigale R Final Edition
TypeSport
Cost

Engine

Displacement1285.0 ccm (78.41 cubic inches)
TypeSuperquadro L-Twin
DetailsV2, four-stroke
Max RPM
Compression13.0:1
Bore/Stroke116.0 x 60.8 mm (4.6 x 2.4 inches)
Valves/Cylinder4
FuelingInjection. Twin injectors pr. cylinder
Ignition
Exhaust2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers with alumimum outer sleeves
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchSlipper and self-servo wet multiplate clutch with hydraulic control
DrivelineChain 525; Front sprocket 15; Rear sprocket 39. Primary drive: Straight cut gears, Ratio 1.77.

Performance

Horespower209.0 HP (152.6 kW) @ 11000 RPM
Torque142.0 Nm (14.5 kgf-m or 104.7 ft.lbs) @ 9000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption6.70 litres/100 km (14.9 km/l or 35.11 mpg)
Fuel Capacity17.00 litres (4.49 US gallons)
Emissions155.4 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeMonocoque Aluminium
Rake24.0 deg
Trail96 mm (3.8 inches)
Front SuspensionÖhlins NIX30 43mm fully adjustable USD fork with TiN treatment. Electronic compression and rebound damping adjustment with semi-active mode
Front Travel120 mm (4.7 inches)
Rear SuspensionFully adjustable Ohlins TTX36 unit. Electronic compression and rebound damping adjustment with semi-active mode. Adjustable linkage: Progressive/flat. Aluminium single-sided swingarm
Rear Travel130 mm (5.1 inches)
Seat
Seat Height830 mm (32.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1105 mm (43.5 inches)
Total Length2070 mm (81.5 inches)
Total Width745 mm (29.3 inches)
Ground Clearance
Wheelbase1435 mm (56.5 inches)
Dry Weight168.0 kg (370.4 pounds)
Wet Weight190.0 kg (418.9 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre200/55-ZR17
Front BrakesDouble disc. ABS. Floating discs. Four-piston calipers. Radially mounted.
Front Brake Diameter330 mm (13.0 inches)
Rear BrakesSingle disc. ABS. Two-piston calipers.
Rear Brake Diameter245 mm (9.6 inches)
Wheels3 spoke W shape forged light alloy. Pirelli Diablo Supercorsa SP tyres.

Comments

It appears you're interested in specifications for the Ducati 1299 Panigale R Final Edition. This Sport model is powered by a Superquadro L-Twin V2, four-stroke engine with 1285.0 ccm (78.41 cubic inches) of actual displacement before 13.0:1 compression. Fueling is metered via Injection. Twin injectors pr. cylinder allowing this machine to produce its 209.0 HP (152.6 kW) @ 11000 RPM horsepower and 142.0 Nm (14.5 kgf-m or 104.7 ft.lbs) @ 9000 RPM torque. According to our records engine heat of the Ducati 1299 Panigale R Final Edition is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 200/55-ZR17 . The entire package is supported by the frame, Monocoque Aluminium. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS. Floating discs. Four-piston calipers. Radially mounted. front brakes and Single disc. ABS. Two-piston calipers. rear brakes. The Ducati 1299 Panigale R Final Edition was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
