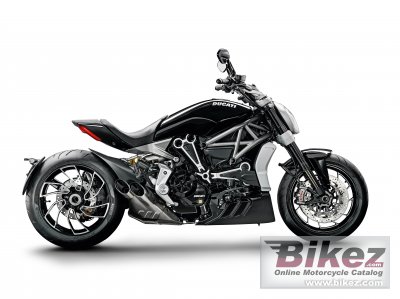

2020 Ducati XDiavel S Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Ducati XDiavel S.

Basic Specs

Ducati XDiavel S
Year2020
MakeDucati
ModelDucati XDiavel S
TypeSport
Cost

Engine

Displacement1262.0 ccm (77.01 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression13.0:1
Bore/Stroke106.0 x 71.5 mm (4.2 x 2.8 inches)
Valves/Cylinder
FuelingInjection. Bosch electronic fuel injection system, cylindrical throttle bodies with Ride-by-Wire, diameter 53 mm
Ignition
Exhaust
Lubrication
Cooling

Drivetrain

Gearbox
Final Drive
ClutchSlipper and self-servo wet multiplate clutch with hydraulic control
Driveline

Performance

Horespower152.0 HP (110.9 kW) @ 9500 RPM
Torque126.0 Nm (12.8 kgf-m or 92.9 ft.lbs) @ 5000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption5.30 litres/100 km (18.9 km/l or 44.38 mpg)
Fuel Capacity18.00 litres (4.76 US gallons)
Emissions123.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTubular steel Trellis
Rake30.0 deg
Trail130 mm (5.1 inches)
Front SuspensionAdustable 50mm fork
Front Travel
Rear SuspensionSingle shock absorber
Rear Travel
Seat
Seat Height755 mm (29.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1615 mm (63.6 inches)
Dry Weight220.0 kg (485.0 pounds)
Wet Weight247.0 kg (544.5 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre240/45-ZR17
Front BrakesDouble disc. Semifloating, Radial Brembo Monoblock 4-Piston ABS
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. 2-Piston fioating caliper, Bosch ABS
Rear Brake Diameter265 mm (10.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Ducati XDiavel S. This Sport model is powered by a V2, four-stroke engine with 1262.0 ccm (77.01 cubic inches) of actual displacement before 13.0:1 compression. Fueling is metered via Injection. Bosch electronic fuel injection system, cylindrical throttle bodies with Ride-by-Wire, diameter 53 mm allowing this machine to produce its 152.0 HP (110.9 kW) @ 9500 RPM horsepower and 126.0 Nm (12.8 kgf-m or 92.9 ft.lbs) @ 5000 RPM torque. According to our records engine heat of the Ducati XDiavel S is moderated by . You'll need to get familiar with the transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 240/45-ZR17 . The entire package is supported by the frame, Tubular steel Trellis . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Semifloating, Radial Brembo Monoblock 4-Piston ABS front brakes and Single disc. 2-Piston fioating caliper, Bosch ABS rear brakes. The Ducati XDiavel S was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
