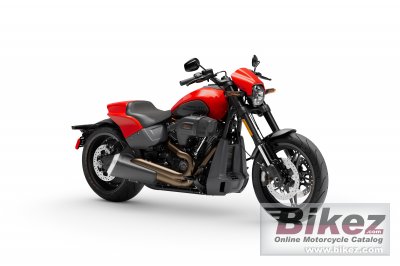

These are the known mechanical and performance specifications for your 2020 Harley-Davidson FXDR 114.
Basic Specs
Year2020
MakeHarley-Davidson
ModelHarley-Davidson FXDR 114
TypeCustom / cruiser
CostUS$ 18999. MSRP depends on country, taxes, accessories, etc.
Engine
Displacement1868.0 ccm (113.99 cubic inches)
TypeMilwaukee-Eight 114
DetailsV2, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke102.0 x 114.3 mm (4.0 x 4.5 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
Exhaust2-into-1; catalyst in header
Lubrication
Cooling
Performance
Horespower100.0 HP (73.0 kW) @ 5000 RPM
Torque160.0 Nm (16.3 kgf-m or 118.0 ft.lbs) @ 3500 RPM
Top Speed
Fuel Economy & Polution
Fuel Consumption5.11 litres/100 km (19.6 km/l or 46.03 mpg)
Fuel Capacity16.70 litres (4.41 US gallons)
Emissions118.6 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake34.0 deg
Trail119 mm (4.7 inches)
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionDual shocks
Rear Travel
Seat
Seat Height720 mm (28.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2425 mm (95.5 inches)
Total Width
Ground Clearance140 mm (5.5 inches)
Wheelbase1735 mm (68.3 inches)
Dry Weight289.0 kg (637.1 pounds)
Wet Weight303.0 kg (668.0 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-ZR19
Rear Tire/Tyre240/40-R18
Front BrakesSingle disc. ABS. 4-piston.
Front Brake Diameter
Rear BrakesSingle disc. ABS. 2-piston.
Rear Brake Diameter
WheelsGloss/satin black, split 5-spoke, cast aluminum with laser etched graphics
