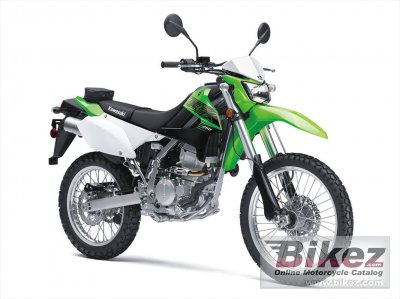

2020 Kawasaki KLX 250 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Kawasaki KLX 250.

Basic Specs

Kawasaki KLX 250
Year2020
MakeKawasaki
ModelKawasaki KLX 250
CostUS$ 5399. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement249.0 ccm (15.19 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke72.0 x 61.2 mm (2.8 x 2.4 inches)
Valves/Cylinder4
FuelingInjection. DFI with 34mm throttle body
IgnitionElectric CDI
Exhaust
LubricationForced lubrication, wet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
Clutch
Driveline

Performance

Horespower21.5 HP (15.7 kW) @ 7500 RPM
Torque20.5 Nm (2.1 kgf-m or 15.1 ft.lbs) @ 7000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.70 litres (2.03 US gallons)
Emissions

Chassis

Frame TypeTbular, semi-double cradle
Rake26.5 deg
Trail105 mm (4.1 inches)
Front SuspensionTelescopic fork
Front Travel255 mm (10.0 inches)
Rear SuspensionNew Uni-Trak
Rear Travel230 mm (9.1 inches)
Seat
Seat Height890 mm (35.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1205 mm (47.4 inches)
Total Length2200 mm (86.6 inches)
Total Width820 mm (32.3 inches)
Ground Clearance285 mm (11.2 inches)
Wheelbase1430 mm (56.3 inches)
Dry Weight
Wet Weight138.0 kg (304.2 pounds)

Wheels & Brakes

Front Tire/Tyre3.00-21
Rear Tire/Tyre4.60-18
Front BrakesSingle disc. Dual -piston hydraulic caliper
Front Brake Diameter
Rear BrakesSingle disc. Single-piston
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Kawasaki KLX 250. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 249.0 ccm (15.19 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Injection. DFI with 34mm throttle body allowing this machine to produce its 21.5 HP (15.7 kW) @ 7500 RPM horsepower and 20.5 Nm (2.1 kgf-m or 15.1 ft.lbs) @ 7000 RPM torque. According to our records engine heat of the Kawasaki KLX 250 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 3.00-21 and the rear is 4.60-18 . The entire package is supported by the frame, Tbular, semi-double cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Dual -piston hydraulic caliper front brakes and Single disc. Single-piston rear brakes. The Kawasaki KLX 250 was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
