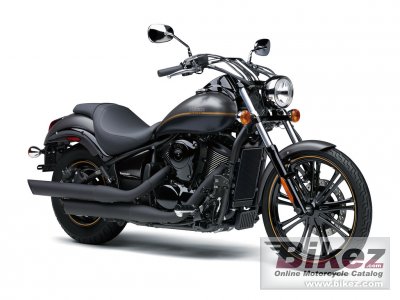

2020 Kawasaki Vulcan 900 Custom Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Kawasaki Vulcan 900 Custom.

Basic Specs

Kawasaki Vulcan 900 Custom
Year2020
MakeKawasaki
ModelKawasaki Vulcan 900 Custom
Cost

Engine

Displacement903.0 ccm (55.10 cubic inches)
Type52° V-twin
DetailsV2, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke88.0 x 74.2 mm (3.5 x 2.9 inches)
Valves/Cylinder4
FuelingInjection. DFI® 34mm throttle bodies (2), with sub-throttle valves
IgnitionTCBI with digital advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final Drive
ClutchWet multi-disc
DrivelineKevlar-reinforced belt

Performance

Horespower49.6 HP (36.2 kW) @ 5700 RPM
Torque78.0 Nm (8.0 kgf-m or 57.5 ft.lbs) @ 3700 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity20.00 litres (5.28 US gallons)
Emissions

Chassis

Frame TypeDouble-cradle, steel
Rake33.0 deg
Trail183 mm (7.2 inches)
Front Suspension41mm hydraulic telescopic fork
Front Travel150 mm (5.9 inches)
Rear SuspensionTriangle swingarm with Uni-Trak single shock
Rear Travel104 mm (4.1 inches)
Seat
Seat Height685 mm (27.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1129 mm (44.4 inches)
Total Length2465 mm (97.0 inches)
Total Width895 mm (35.2 inches)
Ground Clearance140 mm (5.5 inches)
Wheelbase1645 mm (64.8 inches)
Dry Weight
Wet Weight278.0 kg (612.9 pounds)

Wheels & Brakes

Front Tire/Tyre80/90-21
Rear Tire/Tyre180/70-15
Front BrakesSingle disc
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. Hydraulic.
Rear Brake Diameter270 mm (10.6 inches)
Wheels

Comments

It appears you're interested in specifications for the Kawasaki Vulcan 900 Custom. This Custom / cruiser model is powered by a 52° V-twin V2, four-stroke engine with 903.0 ccm (55.10 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Injection. DFI® 34mm throttle bodies (2), with sub-throttle valves allowing this machine to produce its 49.6 HP (36.2 kW) @ 5700 RPM horsepower and 78.0 Nm (8.0 kgf-m or 57.5 ft.lbs) @ 3700 RPM torque. According to our records engine heat of the Kawasaki Vulcan 900 Custom is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 80/90-21 and the rear is 180/70-15 . The entire package is supported by the frame, Double-cradle, steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc. Hydraulic. rear brakes. The Kawasaki Vulcan 900 Custom was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
