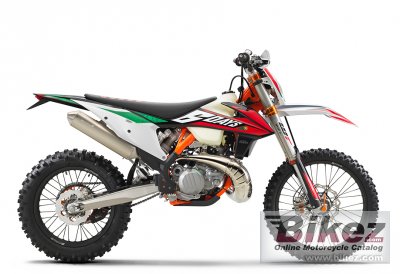

These are the known mechanical and performance specifications for your 2020 KTM 250 EXC TPI Six Days.
Basic Specs
Engine
Displacement249.0 ccm (15.19 cubic inches)
TypeReed intake.
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke66.4 x 72.0 mm (2.6 x 2.8 inches)
Valves/Cylinder
FuelingInjection
IgnitionContactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final Drive
ClutchWet, DDS multi-disc clutch, Brembo hydraulics
Driveline14:50 (13:50). Primary drive: 26:72.
Fuel Economy & Polution
Fuel Consumption2.55 litres/100 km (39.2 km/l or 92.24 mpg)
Fuel Capacity9.00 litres (2.38 US gallons)
Emissions59.2 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeCentral double-cradle-type 25CrMo4 steel
Rake26.5 deg
Trail
Front SuspensionWP-USD Xplor 48 with preload adjuster
Front Travel300 mm (11.8 inches)
Rear SuspensionWP Xplor PDS shock absorber
Rear Travel310 mm (12.2 inches)
Seat
Seat Height960 mm (37.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance370 mm (14.6 inches)
Wheelbase1482 mm (58.3 inches)
Dry Weight103.9 kg (229.1 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc. Brembo 2-piston floating caliper
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Brembo single-piston floating calliper, brake disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
