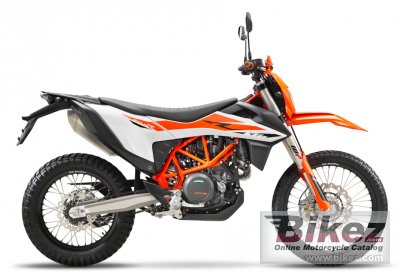

2020 KTM 690 Enduro R Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 KTM 690 Enduro R.

Basic Specs

KTM 690 Enduro R
Year2020
MakeKTM
ModelKTM 690 Enduro R
Cost

Engine

Displacement693.0 ccm (42.29 cubic inches)
TypeBalancer shaft
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke105.0 x 80.0 mm (4.1 x 3.1 inches)
Valves/Cylinder
FuelingInjection
IgnitionKeihin EMS with RBW, twin ignition
Exhaust
LubricationForced oil lubrication with 2 oil pumps
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchPASC slipper clutch, hydraulically actuated
Driveline5/8 - x - 1/4 X Ring

Performance

Horespower73.8 HP (53.8 kW)
Torque73.5 Nm (7.5 kgf-m or 54.2 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption3.90 litres/100 km (25.6 km/l or 60.31 mpg)
Fuel Capacity13.50 litres (3.57 US gallons)
Emissions90.5 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeChrome-moly tubular space frame, powder-coated
Rake27.0 deg
Trail
Front SuspensionWP USD Ø 48 mm
Front Travel250 mm (9.8 inches)
Rear SuspensionWP shock absorber with Pro-Lever linkage
Rear Travel250 mm (9.8 inches)
Seat
Seat Height910 mm (35.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance270 mm (10.6 inches)
Wheelbase1504 mm (59.2 inches)
Dry Weight146.0 kg (321.9 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc. Brembo twin-piston floating calliper. Optional ABS.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. Brembo single-piston floating calliper. Optional ABS.
Rear Brake Diameter240 mm (9.4 inches)
WheelsWire spoked

Comments

It appears you're interested in specifications for the KTM 690 Enduro R. This Enduro / offroad model is powered by a Balancer shaft Single cylinder, four-stroke engine with 693.0 ccm (42.29 cubic inches) of actual displacement before compression. Fueling is metered via Injection allowing this machine to produce its 73.8 HP (53.8 kW) horsepower and 73.5 Nm (7.5 kgf-m or 54.2 ft.lbs) torque. According to our records engine heat of the KTM 690 Enduro R is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, Chrome-moly tubular space frame, powder-coated. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Brembo twin-piston floating calliper. Optional ABS. front brakes and Single disc. Brembo single-piston floating calliper. Optional ABS. rear brakes. The KTM 690 Enduro R was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

.
