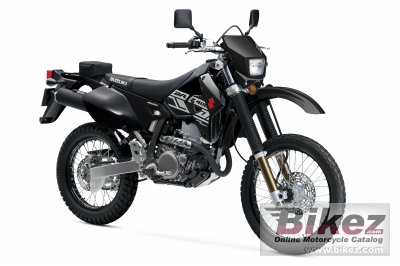

2020 Suzuki DR-Z400S Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Suzuki DR-Z400S.

Basic Specs

Suzuki DR-Z400S
Year2020
MakeSuzuki
ModelSuzuki DR-Z400S
CostUS$ 6799. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement398.0 ccm (24.29 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.3:1
Bore/Stroke90.0 x 62.6 mm (3.5 x 2.5 inches)
Valves/Cylinder4
FuelingCarburettor. Mikuni BSR36
IgnitionDigitally-mapped DC-CDI
Exhaust
LubricationSemi-dry sump
CoolingLiquid

Drivetrain

Gearbox5-speed
Final Drive
ClutchWet, multiplate. Magnesium-alloy.
DrivelineChain, RK520KZ0, 112 links

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity10.00 litres (2.64 US gallons)
Emissions

Chassis

Frame TypeChrome-moly steel tubes
Rake
Trail
Front SuspensionTelescopic, coil spring, oil damped, adjustable damping force
Front Travel287 mm (11.3 inches)
Rear SuspensionLink type, coil spring, oil damped, adjustable spring preload
Rear Travel295 mm (11.6 inches)
Seat
Seat Height935 mm (36.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1230 mm (48.4 inches)
Total Length2310 mm (90.9 inches)
Total Width875 mm (34.4 inches)
Ground Clearance300 mm (11.8 inches)
Wheelbase1485 mm (58.5 inches)
Dry Weight
Wet Weight144.0 kg (317.5 pounds)

Wheels & Brakes

Front Tire/Tyre80/100-M21
Rear Tire/Tyre120/90-M18
Front BrakesSingle disc. Floating rotor, dual-piston calipe
Front Brake Diameter250 mm (9.8 inches)
Rear BrakesSingle disc. Single-piston
Rear Brake Diameter220 mm (8.7 inches)
WheelsWire spoked. Blacked-out aluminum rims.

Comments

It appears you're interested in specifications for the Suzuki DR-Z400S. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 398.0 ccm (24.29 cubic inches) of actual displacement before 11.3:1 compression. Fueling is metered via Carburettor. Mikuni BSR36 allowing this machine to produce its horsepower and torque. According to our records engine heat of the Suzuki DR-Z400S is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 80/100-M21 and the rear is 120/90-M18 . The entire package is supported by the frame, Chrome-moly steel tubes. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Floating rotor, dual-piston calipe front brakes and Single disc. Single-piston rear brakes. The Suzuki DR-Z400S was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
