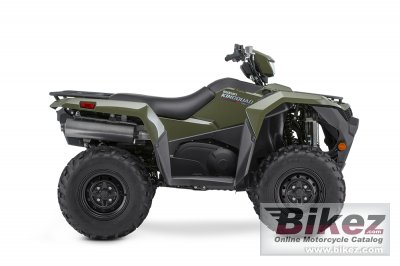

2020 Suzuki KingQuad 750AXi Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Suzuki KingQuad 750AXi.

Basic Specs

Suzuki KingQuad 750AXi
Year2020
MakeSuzuki
ModelSuzuki KingQuad 750AXi
TypeATV
CostUS$ 8849. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement722.0 ccm (44.06 cubic inches)
TypeDual balancer shafts
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.9:1
Bore/Stroke104.0 x 85.0 mm (4.1 x 3.3 inches)
Valves/Cylinder4
FuelingInjection
IgnitionElectronic ignition
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

GearboxAutomatic
Final Drive
ClutchDry shoe, automatic, centrifugal type
DrivelineAutomatic, x 2 speed with reverse and front diff-locked 4WD

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity17.50 litres (4.62 US gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionIndependent, double wishbone, coil spring, oil damped with five-way preload adjustable shock absorbers
Front Travel170 mm (6.7 inches)
Rear SuspensionIndependent, double wishbone, coil spring, oil damped with five-way preload adjustable shock absorbers
Rear Travel196 mm (7.7 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1285 mm (50.6 inches)
Total Length2150 mm (84.6 inches)
Total Width1215 mm (47.8 inches)
Ground Clearance260 mm (10.2 inches)
Wheelbase1280 mm (50.4 inches)
Dry Weight
Wet Weight320.0 kg (705.5 pounds)

Wheels & Brakes

Front Tire/Tyre25/8-12
Rear Tire/Tyre25/10-12
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesSealed multidisc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Suzuki KingQuad 750AXi. This ATV model is powered by a Dual balancer shafts Single cylinder, four-stroke engine with 722.0 ccm (44.06 cubic inches) of actual displacement before 9.9:1 compression. Fueling is metered via Injection allowing this machine to produce its horsepower and torque. According to our records engine heat of the Suzuki KingQuad 750AXi is moderated by Liquid. You'll need to get familiar with the Automatic transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 25/8-12 and the rear is 25/10-12 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Sealed multidisc rear brakes. The Suzuki KingQuad 750AXi was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Winch-ready mounts and wire conduit. Optional power steering (EPS). Several editions. Wide range of accessories.
