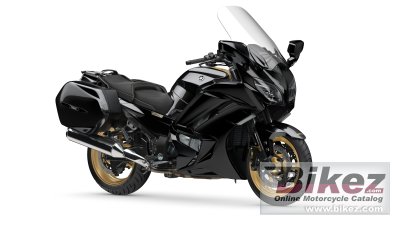

2020 Yamaha FJR1300A Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Yamaha FJR1300A.

Basic Specs

Yamaha FJR1300A
ModelYamaha FJR1300A


Displacement1298.0 ccm (79.20 cubic inches)
DetailsIn-line four, four-stroke
Bore/Stroke79.0 x 66.2 mm (3.1 x 2.6 inches)
IgnitionTCI: Transistor Controlled Ignition
LubricationWet sump


Final Drive
ClutchMultiplate assist-and-slipper wet clutch


Horespower146.2 HP (106.7 kW) @ 8000 RPM
Torque138.0 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 7000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption6.53 litres/100 km (15.3 km/l or 36.02 mpg)
Fuel Capacity24.98 litres (6.60 US gallons)
Emissions151.5 CO2 g/km. (CO2 - Carbon dioxide emission)


Frame TypeAluminium, Diamond Shaped
Rake26.0 deg
Trail109 mm (4.3 inches)
Front Suspension48mm fork, fully adjustable
Front Travel135 mm (5.3 inches)
Rear SuspensionSingle shock, adjustable preload and rebound damping, 4.9-in travel
Rear Travel124 mm (4.9 inches)
Seat Height805 mm (31.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1455 mm (57.3 inches)
Total Length2230 mm (87.8 inches)
Total Width749 mm (29.5 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1544 mm (60.8 inches)
Dry Weight
Wet Weight288.0 kg (635.0 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Unified Brake System and ABS
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Unified Brake System and ABS
Rear Brake Diameter282 mm (11.1 inches)


It appears you're interested in specifications for the Yamaha FJR1300A. This Sport touring model is powered by a In-line four, four-stroke engine with 1298.0 ccm (79.20 cubic inches) of actual displacement before 10.8:1 compression. Fueling is metered via Injection allowing this machine to produce its 146.2 HP (106.7 kW) @ 8000 RPM horsepower and 138.0 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 7000 RPM torque. According to our records engine heat of the Yamaha FJR1300A is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Aluminium, Diamond Shaped. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Unified Brake System and ABS front brakes and Single disc. Unified Brake System and ABS rear brakes. The Yamaha FJR1300A was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
