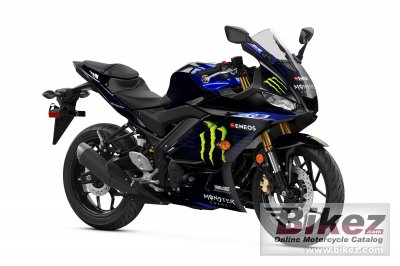

2020 Yamaha Monster Energy Yamaha Motogp Edition YZF-R3 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Yamaha Monster Energy Yamaha Motogp Edition YZF-R3.

Basic Specs

Yamaha Monster Energy  Yamaha Motogp Edition YZF-R3
Year2020
MakeYamaha
ModelYamaha Monster Energy Yamaha Motogp Edition YZF-R3
TypeSport
Cost

Engine

Displacement321.0 ccm (19.59 cubic inches)
TypeAll-aluminum DiASil cylinder
DetailsTwin, four-stroke
Max RPM
Compression11.2:1
Bore/Stroke68.0 x 44.1 mm (2.7 x 1.7 inches)
Valves/Cylinder4
FuelingInjection. Fuel Injection with YCC-T and YCC-I
IgnitionTCI Electric
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchMultiplate clutch
DrivelineConstant mesh

Performance

Horespower
Torque29.6 Nm (3.0 kgf-m or 21.8 ft.lbs) @ 9000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption4.20 litres/100 km (23.8 km/l or 56.00 mpg)
Fuel Capacity14.00 litres (3.70 US gallons)
Emissions97.4 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeDiamond, steel frame and swingarm
Rake25.0 deg
Trail94 mm (3.7 inches)
Front Suspension37mm Upside-Down
Front Travel130 mm (5.1 inches)
Rear SuspensionMonocross single shock, adjustable preload
Rear Travel124 mm (4.9 inches)
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1140 mm (44.9 inches)
Total Length2090 mm (82.3 inches)
Total Width730 mm (28.7 inches)
Ground Clearance160 mm (6.3 inches)
Wheelbase1380 mm (54.3 inches)
Dry Weight
Wet Weight166.9 kg (368.0 pounds)

Wheels & Brakes

Front Tire/Tyre110/70-17
Rear Tire/Tyre140/70-17
Front BrakesSingle disc. Optional ABS.
Front Brake Diameter298 mm (11.7 inches)
Rear BrakesSingle disc. Optional ABS.
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Yamaha Monster Energy Yamaha Motogp Edition YZF-R3. This Sport model is powered by a All-aluminum DiASil cylinder Twin, four-stroke engine with 321.0 ccm (19.59 cubic inches) of actual displacement before 11.2:1 compression. Fueling is metered via Injection. Fuel Injection with YCC-T and YCC-I allowing this machine to produce its horsepower and 29.6 Nm (3.0 kgf-m or 21.8 ft.lbs) @ 9000 RPM torque. According to our records engine heat of the Yamaha Monster Energy Yamaha Motogp Edition YZF-R3 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 110/70-17 and the rear is 140/70-17 . The entire package is supported by the frame, Diamond, steel frame and swingarm. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Optional ABS. front brakes and Single disc. Optional ABS. rear brakes. The Yamaha Monster Energy Yamaha Motogp Edition YZF-R3 was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
