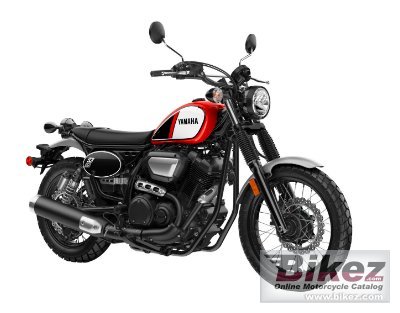

2020 Yamaha SCR 950 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2020 Yamaha SCR 950.

Basic Specs

Yamaha SCR 950
Year2020
MakeYamaha
ModelYamaha SCR 950
Cost

Engine

Displacement942.0 ccm (57.48 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke85.0 x 83.0 mm (3.3 x 3.3 inches)
Valves/Cylinder
FuelingInjection
IgnitionTCI
Exhaust
LubricationWet sump
Cooling

Drivetrain

Gearbox5-speed
Final Drive
ClutchWet, Multiple Disc
DrivelineConstant Mesh

Performance

Horespower53.6 HP (39.2 kW) @ 5500 RPM
Torque79.5 Nm (8.1 kgf-m or 58.6 ft.lbs) @ 3000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption5.10 litres/100 km (19.6 km/l or 46.12 mpg)
Fuel Capacity13.00 litres (3.43 US gallons)
Emissions118.3 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeDouble cradle
Rake29.0 deg
Trail130 mm (5.1 inches)
Front SuspensionTelescopic forks, 41 mm
Front Travel135 mm (5.3 inches)
Rear SuspensionSwingarm
Rear Travel110 mm (4.3 inches)
Seat
Seat Height830 mm (32.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1170 mm (46.1 inches)
Total Length2255 mm (88.8 inches)
Total Width895 mm (35.2 inches)
Ground Clearance145 mm (5.7 inches)
Wheelbase1575 mm (62.0 inches)
Dry Weight
Wet Weight252.0 kg (555.6 pounds)

Wheels & Brakes

Front Tire/Tyre100/90-M19
Rear Tire/Tyre140/80-R17
Front BrakesSingle disc. Hydraulic.
Front Brake Diameter298 mm (11.7 inches)
Rear BrakesSingle disc. Hydraulic.
Rear Brake Diameter298 mm (11.7 inches)
WheelsSpoked wheels, aluminium rims

Comments

It appears you're interested in specifications for the Yamaha SCR 950. This Allround model is powered by a V2, four-stroke engine with 942.0 ccm (57.48 cubic inches) of actual displacement before 9.0:1 compression. Fueling is metered via Injection allowing this machine to produce its 53.6 HP (39.2 kW) @ 5500 RPM horsepower and 79.5 Nm (8.1 kgf-m or 58.6 ft.lbs) @ 3000 RPM torque. According to our records engine heat of the Yamaha SCR 950 is moderated by . You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 100/90-M19 and the rear is 140/80-R17 . The entire package is supported by the frame, Double cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Hydraulic. front brakes and Single disc. Hydraulic. rear brakes. The Yamaha SCR 950 was launched in 2020, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
