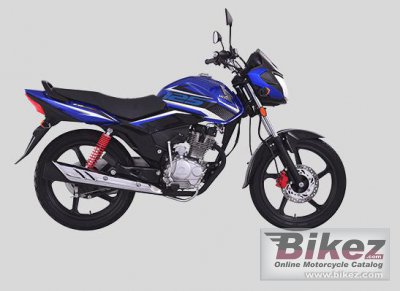

2021 Atlas Honda CB125F Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Atlas Honda CB125F.

Basic Specs

Atlas Honda CB125F
Year2021
MakeAtlas Honda
ModelAtlas Honda CB125F
Cost

Engine

Displacement124.1 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke56.5 x 49.5 mm (2.2 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionCDI
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final Drive
Clutch
DrivelineRoller chain final drive

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity12.30 litres (3.25 US gallons)
Emissions

Chassis

Frame TypeDiamond Type Steel
Rake
Trail
Front SuspensionTelescopic Forke 103 mm Travel
Front Travel
Rear SuspensionSwing Arm 76 mm Travel
Rear Travel
Seat
Seat Height789 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1095 mm (43.1 inches)
Total Length2043 mm (80.4 inches)
Total Width742 mm (29.2 inches)
Ground Clearance120 mm (4.7 inches)
Wheelbase1294 mm (50.9 inches)
Dry Weight122.0 kg (269.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre2.75-18
Rear Tire/Tyre90/90-18
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake). Non-asbestos
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Atlas Honda CB125F. This Allround model is powered by a Single cylinder, four-stroke engine with 124.1 ccm (7.57 cubic inches) of actual displacement before 9.0:1 compression. Fueling is metered via Carburettor allowing this machine to produce its horsepower and torque. According to our records engine heat of the Atlas Honda CB125F is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 2.75-18 and the rear is 90/90-18 . The entire package is supported by the frame, Diamond Type Steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake). Non-asbestos rear brakes. The Atlas Honda CB125F was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Sold in Pakistan.
