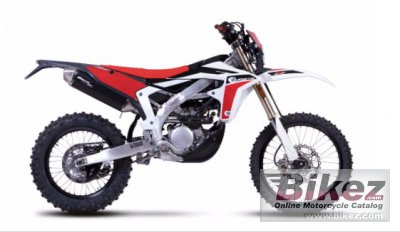

These are the known mechanical and performance specifications for your 2021 Fantic XEF 250 .
Basic Specs
Engine
Displacement249.0 ccm (15.19 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression13.8:1
Bore/Stroke77.0 x 53.6 mm (3.0 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionTC!
Exhaust
Lubrication
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.90 litres (2.09 US gallons)
Emissions
Chassis
Frame TypeAluminum perimeter
Rake27.2 deg
Trail116 mm (4.6 inches)
Front SuspensionKYB 48 mm, fully adjustable
Front Travel310 mm (12.2 inches)
Rear SuspensionKYB, fully adjustable
Rear Travel317 mm (12.5 inches)
Seat
Seat Height955 mm (37.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1270 mm (50.0 inches)
Total Length2175 mm (85.6 inches)
Total Width825 mm (32.5 inches)
Ground Clearance
Wheelbase1480 mm (58.3 inches)
Dry Weight
Wet Weight115.0 kg (253.5 pounds)
Wheels & Brakes
Front Tire/Tyre90/90-21
Rear Tire/Tyre130/90-18
Front BrakesSingle disc. Wave disc
Front Brake Diameter270 mm (10.6 inches)
Rear BrakesSingle disc. Wave disc
Rear Brake Diameter245 mm (9.6 inches)
Wheels
Comments
