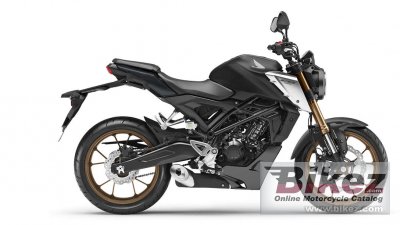

2021 Honda CB125R Neo Sports Cafe Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Honda CB125R Neo Sports Cafe.

Basic Specs

Honda CB125R Neo Sports Cafe
Year2021
MakeHonda
ModelHonda CB125R Neo Sports Cafe
TypeSport
Cost

Engine

Displacement124.9 ccm (7.62 cubic inches)
TypeBalancer shaft
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.3:1
Bore/Stroke57.3 x 48.4 mm (2.3 x 1.9 inches)
Valves/Cylinder2
FuelingCarburettor
IgnitionAC-CDI
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet, multiplate with coil springs
Driveline

Performance

Horespower14.8 HP (10.8 kW) @ 10000 RPM
Torque11.6 Nm (1.2 kgf-m or 8.6 ft.lbs) @ 8000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity10.00 litres (2.64 US gallons)
Emissions

Chassis

Frame TypeDiamond, steel
Rake24.2 deg
Trail90 mm (3.6 inches)
Front Suspension41mm SFF-BP USD forks
Front Travel
Rear SuspensionSingle-damper with preload adjustment
Rear Travel
SeatTwo-person seat
Seat Height816 mm (32.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1055 mm (41.5 inches)
Total Length2015 mm (79.3 inches)
Total Width820 mm (32.3 inches)
Ground Clearance140 mm (5.5 inches)
Wheelbase1345 mm (53.0 inches)
Dry Weight
Wet Weight137.0 kg (302.0 pounds)

Wheels & Brakes

Front Tire/Tyre110/70-17
Rear Tire/Tyre150/60-17
Front BrakesSingle disc. Hydraulic dual-piston brake caliper and Radial mount Nissin 4-piston caliper.
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc. Hydraulic single-piston brake caliper
Rear Brake Diameter220 mm (8.7 inches)
WheelsSix spoke cast aluminium

Comments

It appears you're interested in specifications for the Honda CB125R Neo Sports Cafe. This Sport model is powered by a Balancer shaft Single cylinder, four-stroke engine with 124.9 ccm (7.62 cubic inches) of actual displacement before 11.3:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 14.8 HP (10.8 kW) @ 10000 RPM horsepower and 11.6 Nm (1.2 kgf-m or 8.6 ft.lbs) @ 8000 RPM torque. According to our records engine heat of the Honda CB125R Neo Sports Cafe is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 110/70-17 and the rear is 150/60-17 . The entire package is supported by the frame, Diamond, steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Hydraulic dual-piston brake caliper and Radial mount Nissin 4-piston caliper. front brakes and Single disc. Hydraulic single-piston brake caliper rear brakes. The Honda CB125R Neo Sports Cafe was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
