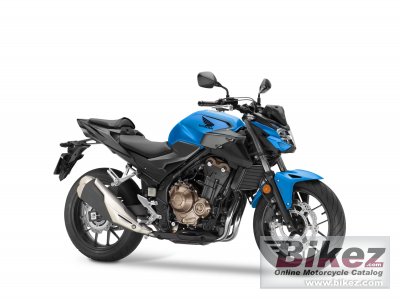

2021 Honda CB500F Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Honda CB500F.

Basic Specs

Honda CB500F
ModelHonda CB500F


Displacement471.0 ccm (28.74 cubic inches)
DetailsTwin, four-stroke
Bore/Stroke67.0 x 66.8 mm (2.6 x 2.6 inches)
FuelingInjection. PGM-FI with 34mm throttle bodies
IgnitionComputer-controlled digital transistorized with electronic advance


Final Drive
ClutchWet multiplate, assist
Driveline520 O-ring-sealed chain; 15T/41T


Horespower46.4 HP (33.9 kW) @ 8500 RPM
Torque41.3 Nm (4.2 kgf-m or 30.5 ft.lbs) @ 7000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption3.50 litres/100 km (28.6 km/l or 67.21 mpg)
Fuel Capacity17.00 litres (4.49 US gallons)
Emissions81.2 CO2 g/km. (CO2 - Carbon dioxide emission)


Frame TypeDiamond tube
Rake25.0 deg
Trail102 mm (4.0 inches)
Front Suspension41mm preload adjustable fork
Front Travel120 mm (4.7 inches)
Rear SuspensionPro-Link single shock
Rear Travel135 mm (5.3 inches)
Seat Height
Alt. Seat Height
Total Height1060 mm (41.7 inches)
Total Length2080 mm (81.9 inches)
Total Width790 mm (31.1 inches)
Ground Clearance145 mm (5.7 inches)
Wheelbase1443 mm (56.8 inches)
Dry Weight
Wet Weight189.0 kg (416.7 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre160/60-17
Front BrakesSingle disc. ABS. Wave disc. Two-piston calipers.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS. Wave disc.
Rear Brake Diameter240 mm (9.4 inches)
WheelsY-shaped spokes


It appears you're interested in specifications for the Honda CB500F. This Naked bike model is powered by a Twin, four-stroke engine with 471.0 ccm (28.74 cubic inches) of actual displacement before 10.7:1 compression. Fueling is metered via Injection. PGM-FI with 34mm throttle bodies allowing this machine to produce its 46.4 HP (33.9 kW) @ 8500 RPM horsepower and 41.3 Nm (4.2 kgf-m or 30.5 ft.lbs) @ 7000 RPM torque. According to our records engine heat of the Honda CB500F is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 160/60-17 . The entire package is supported by the frame, Diamond tube. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ABS. Wave disc. Two-piston calipers. front brakes and Single disc. ABS. Wave disc. rear brakes. The Honda CB500F was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
