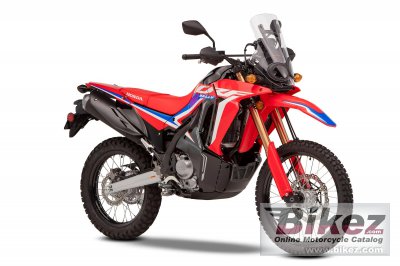

2021 Honda CRF300 Rally Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Honda CRF300 Rally.

Basic Specs

Honda CRF300 Rally
ModelHonda CRF300 Rally


Displacement286.0 ccm (17.45 cubic inches)
Type33mm intake valve, titanium; 26mm exhaust, titanium
DetailsSingle cylinder, four-stroke
Bore/Stroke76.0 x 63.0 mm (3.0 x 2.5 inches)
FuelingInjection. Programmed Fuel-Injection system (PGM-FI); 44mm throttle bore
IgnitionFull transistor


Final Drive
ClutchWet multiplate, assist/slipper clutch
Driveline#520 Chain; 13T/51T


Horespower27.0 HP (19.7 kW) @ 8500 RPM
Torque26.6 Nm (2.7 kgf-m or 19.6 ft.lbs) @ 6500 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption3.10 litres/100 km (32.3 km/l or 75.88 mpg)
Fuel Capacity12.80 litres (3.38 US gallons)
Emissions71.9 CO2 g/km. (CO2 - Carbon dioxide emission)


Frame TypeSteel semi-double cradle
Rake27.5 deg
Trail109 mm (4.3 inches)
Front Suspension43mm telescopic USD fork
Front Travel305 mm (12.0 inches)
Rear SuspensionPro-Link system
Rear Travel315 mm (12.4 inches)
Seat Height885 mm (34.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1415 mm (55.7 inches)
Total Length2230 mm (87.8 inches)
Total Width920 mm (36.2 inches)
Ground Clearance275 mm (10.8 inches)
Wheelbase1455 mm (57.3 inches)
Dry Weight
Wet Weight153.0 kg (337.3 pounds)

Wheels & Brakes

Front Tire/Tyre80/100-21
Rear Tire/Tyre120/80-18
Front BrakesSingle disc. Two-piston calipers.
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
WheelsDunlop Geomax MX3S


It appears you're interested in specifications for the Honda CRF300 Rally. This Enduro / offroad model is powered by a 33mm intake valve, titanium; 26mm exhaust, titanium Single cylinder, four-stroke engine with 286.0 ccm (17.45 cubic inches) of actual displacement before 10.7:1 compression. Fueling is metered via Injection. Programmed Fuel-Injection system (PGM-FI); 44mm throttle bore allowing this machine to produce its 27.0 HP (19.7 kW) @ 8500 RPM horsepower and 26.6 Nm (2.7 kgf-m or 19.6 ft.lbs) @ 6500 RPM torque. According to our records engine heat of the Honda CRF300 Rally is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 80/100-21 and the rear is 120/80-18 . The entire package is supported by the frame, Steel semi-double cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Two-piston calipers. front brakes and Single disc rear brakes. The Honda CRF300 Rally was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: CRF300R
