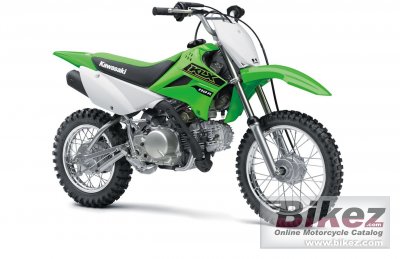

2021 Kawasaki KLX 110R Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Kawasaki KLX 110R .

Basic Specs

Kawasaki KLX 110R
Year2021
MakeKawasaki
ModelKawasaki KLX 110R
CostUS$ 2349. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement112.0 ccm (6.83 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke53.0 x 50.6 mm (2.1 x 2.0 inches)
Valves/Cylinder2
FuelingCarburettor. Keihin 18mm
IgnitionDC-CDI
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox4-speed
Final Drive
ClutchWet multi-plate
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity3.79 litres (1.00 US gallons)
Emissions

Chassis

Frame TypeBackbone frame, high-tensile steel
Rake24.8 deg
Trail51 mm (2.0 inches)
Front Suspension30mm hydraulic telescopic fork
Front Travel109 mm (4.3 inches)
Rear SuspensionSwingarm with single hydraulic shock
Rear Travel109 mm (4.3 inches)
Seat
Seat Height726 mm (28.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height955 mm (37.6 inches)
Total Length1560 mm (61.4 inches)
Total Width650 mm (25.6 inches)
Ground Clearance216 mm (8.5 inches)
Wheelbase1075 mm (42.3 inches)
Dry Weight
Wet Weight76.0 kg (167.5 pounds)

Wheels & Brakes

Front Tire/Tyre2.50-14
Rear Tire/Tyre3.00-12
Front BrakesExpanding brake (drum brake). Cable actuated
Front Brake Diameter90 mm (3.5 inches)
Rear BrakesExpanding brake (drum brake). Rod actuated
Rear Brake Diameter110 mm (4.3 inches)
WheelsWire spoked

Comments

It appears you're interested in specifications for the Kawasaki KLX 110R . This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 112.0 ccm (6.83 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Carburettor. Keihin 18mm allowing this machine to produce its horsepower and torque. According to our records engine heat of the Kawasaki KLX 110R is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 2.50-14 and the rear is 3.00-12 . The entire package is supported by the frame, Backbone frame, high-tensile steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake). Cable actuated front brakes and Expanding brake (drum brake). Rod actuated rear brakes. The Kawasaki KLX 110R was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
