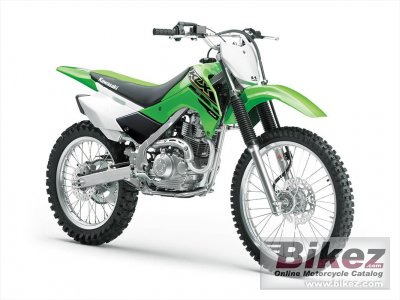

2021 Kawasaki KLX 140R F Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2021 Kawasaki KLX 140R F.

Basic Specs

Kawasaki KLX 140R F
Year2021
MakeKawasaki
ModelKawasaki KLX 140R F
CostUS$ 3749. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement144.0 ccm (8.79 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke58.0 x 54.4 mm (2.3 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor. Keihin 20mm
IgnitionDigital DC-CDI
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final Drive
ClutchMultiplate, wet
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity5.68 litres (1.50 US gallons)
Emissions

Chassis

Frame TypeHigh-tensile steel, box-section perimeter
Rake27.0 deg
Trail117 mm (4.6 inches)
Front Suspension33mm telescopic fork
Front Travel191 mm (7.5 inches)
Rear SuspensionUni-Trak® linkage system and single shock with piggyback reservoir, 20-way rebound damping and threaded preload adjustability
Rear Travel201 mm (7.9 inches)
Seat
Seat Height861 mm (33.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1135 mm (44.7 inches)
Total Length1996 mm (78.6 inches)
Total Width790 mm (31.1 inches)
Ground Clearance315 mm (12.4 inches)
Wheelbase1285 mm (50.6 inches)
Dry Weight
Wet Weight99.0 kg (218.2 pounds)

Wheels & Brakes

Front Tire/Tyre70/100-21
Rear Tire/Tyre90/100-18
Front BrakesSingle disc. Petal disc with a dual-piston caliper
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesSingle disc. Petal disc with single-piston caliper
Rear Brake Diameter186 mm (7.3 inches)
Wheels

Comments

It appears you're interested in specifications for the Kawasaki KLX 140R F. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 144.0 ccm (8.79 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Carburettor. Keihin 20mm allowing this machine to produce its horsepower and torque. According to our records engine heat of the Kawasaki KLX 140R F is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 70/100-21 and the rear is 90/100-18 . The entire package is supported by the frame, High-tensile steel, box-section perimeter. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Petal disc with a dual-piston caliper front brakes and Single disc. Petal disc with single-piston caliper rear brakes. The Kawasaki KLX 140R F was launched in 2021, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
