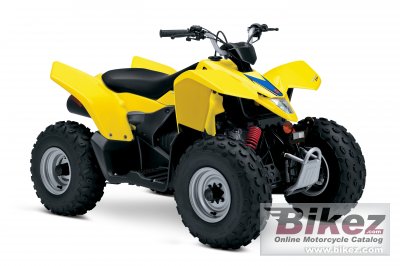

These are the known mechanical and performance specifications for your 2021 Suzuki QuadSport Z90.
Basic Specs
Year2021
MakeSuzuki
ModelSuzuki QuadSport Z90
TypeATV
CostUS$ 2999. MSRP depends on country, taxes, accessories, etc.
Engine
Displacement90.0 ccm (5.49 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke45.5 x 55.2 mm (1.8 x 2.2 inches)
Valves/Cylinder
FuelingCarburettor. Mikuni VM16
IgnitionCDI
Exhaust
LubricationWet sump
CoolingAir
Drivetrain
GearboxAutomatic
Final Drive
ClutchDry shoe, automatic, centrifugal type
Driveline2WD, Chain RK530 with 60 links
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity6.00 litres (1.59 US gallons)
Emissions
Chassis
Frame TypeHigh-rigidity steel
Rake
Trail
Front SuspensionIndependent single A-arm, oil-damped, coil-sprung
Front Travel
Rear SuspensionSwing arm, oil-damped, coil-sprung
Rear Travel
Seat
Seat Height650 mm (25.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height915 mm (36.0 inches)
Total Length1505 mm (59.3 inches)
Total Width875 mm (34.4 inches)
Ground Clearance150 mm (5.9 inches)
Wheelbase1030 mm (40.6 inches)
Dry Weight
Wet Weight127.0 kg (280.0 pounds)
Wheels & Brakes
Front Tire/Tyre19/7-8
Rear Tire/Tyre19/7-8
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
