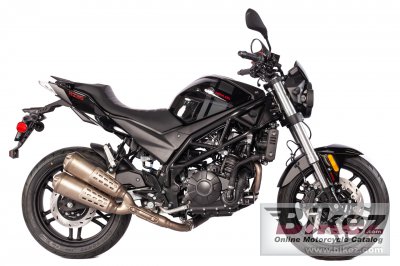

2022 California Scooter RZ3S Haylon 400 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2022 California Scooter RZ3S Haylon 400.

Basic Specs

California Scooter RZ3S Haylon 400
Year2022
MakeCalifornia Scooter
ModelCalifornia Scooter RZ3S Haylon 400
TypeSport
CostUS$ 3995. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement378.0 ccm (23.07 cubic inches)
TypeBalance shaft
DetailsTwin, four-stroke
Max RPM
Compression11.6:1
Bore/Stroke66.0 x 55.2 mm (2.6 x 2.2 inches)
Valves/Cylinder4
FuelingInjection. EFI
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
Clutch
Driveline

Performance

Horespower36.2 HP (26.4 kW) @ 9000 RPM
Torque35.0 Nm (3.6 kgf-m or 25.8 ft.lbs) @ 6000 RPM
Top Speed90.1 km/h (56.0 mph)

Fuel Economy & Polution

Fuel Consumption3.41 litres/100 km (29.3 km/l or 68.98 mpg)
Fuel Capacity19.98 litres (5.28 US gallons)
Emissions79.1 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTrellis, steel
Rake25.0 deg
Trail100 mm (3.9 inches)
Front SuspensionInverted forks, damping adjustable to 16 positions
Front Travel119 mm (4.7 inches)
Rear SuspensionPreload-adjustable monoshock, 7 positions of damping
Rear Travel89 mm (3.5 inches)
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1064 mm (41.9 inches)
Total Length2000 mm (78.7 inches)
Total Width826 mm (32.5 inches)
Ground Clearance170 mm (6.7 inches)
Wheelbase1330 mm (52.4 inches)
Dry Weight
Wet Weight190.0 kg (418.9 pounds)

Wheels & Brakes

Front Tire/Tyre110/70-17
Rear Tire/Tyre150/60-17
Front BrakesSingle disc. ABS
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. ABS
Rear Brake Diameter258 mm (10.2 inches)
WheelsCast aluminum

Comments

It appears you're interested in specifications for the California Scooter RZ3S Haylon 400. This Sport model is powered by a Balance shaft Twin, four-stroke engine with 378.0 ccm (23.07 cubic inches) of actual displacement before 11.6:1 compression. Fueling is metered via Injection. EFI allowing this machine to produce its 36.2 HP (26.4 kW) @ 9000 RPM horsepower and 35.0 Nm (3.6 kgf-m or 25.8 ft.lbs) @ 6000 RPM torque. According to our records engine heat of the California Scooter RZ3S Haylon 400 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 110/70-17 and the rear is 150/60-17 . The entire package is supported by the frame, Trellis, steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. ABS front brakes and Single disc. ABS rear brakes. The California Scooter RZ3S Haylon 400 was launched in 2022, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Brand often abbreviated CSC. Bike made in China by Zongshen.
