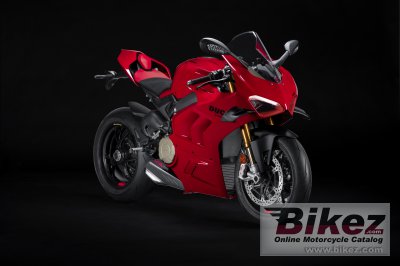

These are the known mechanical and performance specifications for your 2022 Ducati Panigale V4 S.
Basic Specs
Engine
Displacement1103.0 ccm (67.31 cubic inches)
TypeL-twin. Counter-rotating crankshaft.
DetailsV4, four-stroke
Max RPM
Compression14.0:1
Bore/Stroke81.0 x 53.5 mm (3.2 x 2.1 inches)
Valves/Cylinder4
FuelingInjection. Electronic fuel injection system. Twin injectors per cylinder. Full ride-by-wire elliptical throttle bodies.
Ignition
Exhaust4-2-1-2 system with 2 catalytic converter and 4 lambda probes.
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final Drive
ClutchSlipper and self-servo wet multiplate clutch with hydraulic control
Driveline
Performance
Horespower215.5 HP (157.3 kW) @ 13000 RPM
Torque123.6 Nm (12.6 kgf-m or 91.2 ft.lbs) @ 9500 RPM
Top Speed
Fuel Economy & Polution
Fuel Consumption7.60 litres/100 km (13.2 km/l or 30.95 mpg)
Fuel Capacity16.00 litres (4.23 US gallons)
Emissions176.3 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeAluminium alloy. Engine is used as a structural chassis element. Trellis subframe.
Rake24.5 deg
Trail100 mm (3.9 inches)
Front SuspensionÖhlins NPX25/30 pressurized 43 mm fully adjustable fork with TiN treatment. Electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode
Front Travel125 mm (4.9 inches)
Rear SuspensionFully adjustable Öhlins TTX36 unit. Electronic compression and rebound damping adjustment with Öhlins Smart EC 2.0 event-based mode. Aluminium single-sided swingarm.
Rear Travel130 mm (5.1 inches)
SeatDual seats
Seat Height850 mm (33.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1469 mm (57.8 inches)
Dry Weight174.0 kg (383.6 pounds)
Wet Weight195.0 kg (429.9 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre200/60-ZR17
Front BrakesDouble disc. ABS. Brembo
Front Brake Diameter330 mm (13.0 inches)
Rear BrakesSingle disc. ABS. Brembo
Rear Brake Diameter245 mm (9.6 inches)
Wheels3-spokes forged aluminum alloy. Pirelli Diablo Supercorsa SP tires.
Comments
Riding Modes, Power Modes, Bosch Cornering ABS EVO, Ducati Traction Control (DTC) EVO 3, Ducati Wheelie Control (DWC) EVO, Ducati Slide Control (DSC), Engine Brake Control (EBC) EVO, Auto tyre calibration
