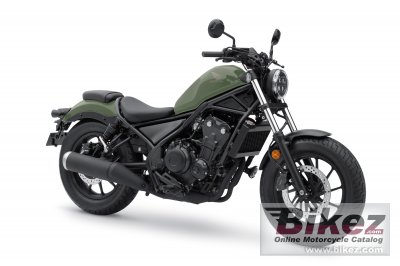

2022 Honda CMX500 Rebel Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2022 Honda CMX500 Rebel.

Basic Specs

Honda CMX500 Rebel
ModelHonda CMX500 Rebel


Displacement471.0 ccm (28.74 cubic inches)
DetailsTwin, four-stroke
Bore/Stroke67.0 x 66.8 mm (2.6 x 2.6 inches)
FuelingInjection. PGM-FI with 34mm throttle bodies
IgnitionComputer-controlled digital transistorized with electronic advance
Exhaust120 mm ”˜shotgun”™ style exhaust


Final Drive
ClutchWet multiplate assist/slipper
DrivelineO-ring-sealed chain


Horespower45.6 HP (33.3 kW) @ 8500 RPM
Torque43.3 Nm (4.4 kgf-m or 31.9 ft.lbs) @ 6000 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption3.70 litres/100 km (27.0 km/l or 63.57 mpg)
Fuel Capacity11.20 litres (2.96 US gallons)
Emissions85.8 CO2 g/km. (CO2 - Carbon dioxide emission)


Frame TypeTubular steel diamont
Rake28.0 deg
Trail110 mm (4.3 inches)
Front Suspension41mm telescopic fork
Front Travel109 mm (4.3 inches)
Rear SuspensionTwin Showa nitrogen-charged shocks, 5 step adjustable
Rear Travel119 mm (4.7 inches)
Seat Height690 mm (27.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1090 mm (42.9 inches)
Total Length2205 mm (86.8 inches)
Total Width820 mm (32.3 inches)
Ground Clearance125 mm (4.9 inches)
Wheelbase1490 mm (58.7 inches)
Dry Weight
Wet Weight191.0 kg (421.1 pounds)

Wheels & Brakes

Front Tire/Tyre130/90-16
Rear Tire/Tyre150/80-16
Front BrakesSingle disc. Twin piston
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc. Single piston
Rear Brake Diameter
WheelsCast aluminium. Dunlop tires


It appears you're interested in specifications for the Honda CMX500 Rebel. This Sport model is powered by a Twin, four-stroke engine with 471.0 ccm (28.74 cubic inches) of actual displacement before 10.7:1 compression. Fueling is metered via Injection. PGM-FI with 34mm throttle bodies allowing this machine to produce its 45.6 HP (33.3 kW) @ 8500 RPM horsepower and 43.3 Nm (4.4 kgf-m or 31.9 ft.lbs) @ 6000 RPM torque. According to our records engine heat of the Honda CMX500 Rebel is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 130/90-16 and the rear is 150/80-16 . The entire package is supported by the frame, Tubular steel diamont. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Twin piston front brakes and Single disc. Single piston rear brakes. The Honda CMX500 Rebel was launched in 2022, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
