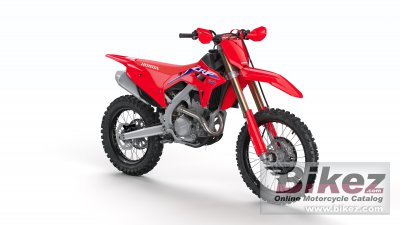

These are the known mechanical and performance specifications for your 2022 Honda CRF250RX.
Basic Specs
Engine
Displacement249.4 ccm (15.22 cubic inches)
Type33mm intake valve, titanium; 26mm exhaust, titanium
DetailsSingle cylinder, four-stroke
Max RPM
Compression13.9:1
Bore/Stroke79.0 x 50.9 mm (3.1 x 2.0 inches)
Valves/Cylinder4
Fueling
IgnitionFull transistorized
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final Drive
ClutchMulti plate wet
Driveline#520 Chain; 13T/48T
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity8.00 litres (2.11 US gallons)
Emissions
Chassis
Frame TypeAluminium twin tube
Rake27.2 deg
Trail114 mm (4.5 inches)
Front Suspension49mm Showa coil-spring USD fork
Front Travel305 mm (12.0 inches)
Rear SuspensionShowa Mono shock with Honda Pro-Link
Rear Travel315 mm (12.4 inches)
Seat
Seat Height964 mm (38.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1281 mm (50.4 inches)
Total Length2170 mm (85.4 inches)
Total Width839 mm (33.0 inches)
Ground Clearance335 mm (13.2 inches)
Wheelbase1477 mm (58.1 inches)
Dry Weight
Wet Weight108.0 kg (238.1 pounds)
Wheels & Brakes
Front Tire/Tyre80/100-21
Rear Tire/Tyre110/100-18
Front BrakesSingle disc. Hydraulic
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Hydraulic
Rear Brake Diameter240 mm (9.4 inches)
Wheels
Comments
Model ID: CRF250RX. HRC Launch Control. 3 riding modes.
