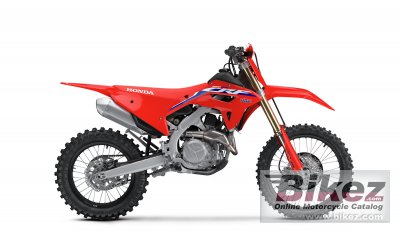

These are the known mechanical and performance specifications for your 2022 Honda CRF400RX.
Basic Specs
Year2022
MakeHonda
ModelHonda CRF400RX
TypeEnduro / offroad
CostUS$ 9899. MSRP depends on country, taxes, accessories, etc.
Engine
Displacement413.0 ccm (25.20 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression13.5:1
Bore/Stroke92.0 x 62.1 mm (3.6 x 2.4 inches)
Valves/Cylinder4
FuelingInjection. Programmed Fuel Injection (PGM-FI), 46mm downdraft throttle body
IgnitionDC-CDI
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final Drive
ClutchMulti plate wet
DrivelineSealed 520 chain; 13T/48T
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.95 litres (2.10 US gallons)
Emissions
Chassis
Frame TypeAluminium frame and swingarm
Rake27.7 deg
Trail114 mm (4.5 inches)
Front Suspension49mm leading-axle inverted telescopic Showa coil-spring fork with rebound and compression damping adjustability
Front Travel310 mm (12.2 inches)
Rear SuspensionPro-Link Showa single shock with adjustable spring preload, rebound and compression damping adjustability
Rear Travel312 mm (12.3 inches)
Seat
Seat Height965 mm (38.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1282 mm (50.5 inches)
Total Length2182 mm (85.9 inches)
Total Width839 mm (33.0 inches)
Ground Clearance336 mm (13.2 inches)
Wheelbase1481 mm (58.3 inches)
Dry Weight
Wet Weight113.9 kg (251.0 pounds)
Wheels & Brakes
Front Tire/Tyre90/90-21
Rear Tire/Tyre120/90-18
Front BrakesSingle disc. Hydraulic. Two-piston calipers.
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Hydraulic
Rear Brake Diameter240 mm (9.4 inches)
WheelsDunlop Geomax AT81 tires.
Comments
3 power modes. Model ID: CRF400RX.
