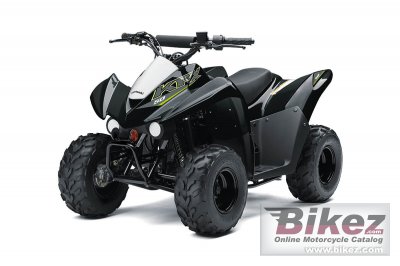

2022 Kawasaki KFX50 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2022 Kawasaki KFX50.

Basic Specs

Kawasaki KFX50
Year2022
MakeKawasaki
ModelKawasaki KFX50
TypeATV
CostUS$ 2199. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement49.5 ccm (3.02 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.8:1
Bore/Stroke39.0 x 41.4 mm (1.5 x 1.6 inches)
Valves/Cylinder
FuelingCarburettor. Keihin PTE 16
IgnitionSolid state CDI
Exhaust
Lubrication
CoolingAir

Drivetrain

GearboxAutomatic
Final Drive
Clutch
Driveline2WD

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity5.68 litres (1.50 US gallons)
Emissions

Chassis

Frame TypeDouble cradle, steel
Rake
Trail
Front SuspensionSingle A-arm with twin shock absorbers
Front Travel71 mm (2.8 inches)
Rear SuspensionSwingarm with single shock absorber
Rear Travel74 mm (2.9 inches)
Seat
Seat Height635 mm (25.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height910 mm (35.8 inches)
Total Length1400 mm (55.1 inches)
Total Width880 mm (34.6 inches)
Ground Clearance84 mm (3.3 inches)
Wheelbase965 mm (38.0 inches)
Dry Weight
Wet Weight111.1 kg (245.0 pounds)

Wheels & Brakes

Front Tire/Tyre16/8-7
Rear Tire/Tyre16/8-7
Front BrakesExpanding brake (drum brake). Dual
Front Brake Diameter
Rear BrakesSingle disc. Hydraulic.
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Kawasaki KFX50. This ATV model is powered by a Single cylinder, four-stroke engine with 49.5 ccm (3.02 cubic inches) of actual displacement before 10.8:1 compression. Fueling is metered via Carburettor. Keihin PTE 16 allowing this machine to produce its horsepower and torque. According to our records engine heat of the Kawasaki KFX50 is moderated by Air. You'll need to get familiar with the Automatic transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 16/8-7 and the rear is 16/8-7 . The entire package is supported by the frame, Double cradle, steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake). Dual front brakes and Single disc. Hydraulic. rear brakes. The Kawasaki KFX50 was launched in 2022, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Intended fro children 6+ years.
