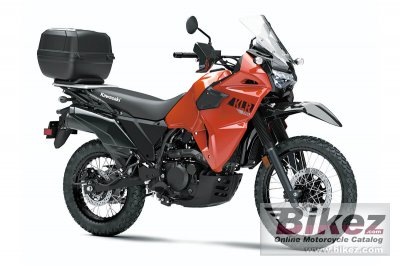

2022 Kawasaki KLR 650 Traveller Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2022 Kawasaki KLR 650 Traveller.

Basic Specs

Kawasaki KLR 650 Traveller
Year2022
MakeKawasaki
ModelKawasaki KLR 650 Traveller
CostUS$ 7399. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement651.0 ccm (39.72 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.8:1
Bore/Stroke100.0 x 83.0 mm (3.9 x 3.3 inches)
Valves/Cylinder
FuelingInjection. DFI w/40mm Throttle Body
IgnitionElectric CDI
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final Drive
ClutchWet multi-disc manual clutch
DrivelineSealed chain

Performance

Horespower
Torque53.0 Nm (5.4 kgf-m or 39.1 ft.lbs) @ 4500 RPM
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity23.09 litres (6.10 US gallons)
Emissions

Chassis

Frame TypeTubular, Semi-Double Cradle
Rake30.0 deg
Trail122 mm (4.8 inches)
Front Suspension41mm telescopic fork
Front Travel200 mm (7.9 inches)
Rear SuspensionUni-Trak single-shock system with 5-way preload and stepless rebound damping
Rear Travel185 mm (7.3 inches)
Seat
Seat Height871 mm (34.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1466 mm (57.7 inches)
Total Length2281 mm (89.8 inches)
Total Width970 mm (38.2 inches)
Ground Clearance210 mm (8.3 inches)
Wheelbase1480 mm (58.3 inches)
Dry Weight
Wet Weight214.0 kg (471.7 pounds)

Wheels & Brakes

Front Tire/Tyre90/90-21
Rear Tire/Tyre130/80-17
Front BrakesSingle disc. Two-piston calipers. ABS.
Front Brake Diameter280 mm (11.0 inches)
Rear BrakesSingle disc. Single piston. ABS..
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Kawasaki KLR 650 Traveller. This Super motard model is powered by a Single cylinder, four-stroke engine with 651.0 ccm (39.72 cubic inches) of actual displacement before 9.8:1 compression. Fueling is metered via Injection. DFI w/40mm Throttle Body allowing this machine to produce its horsepower and 53.0 Nm (5.4 kgf-m or 39.1 ft.lbs) @ 4500 RPM torque. According to our records engine heat of the Kawasaki KLR 650 Traveller is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 90/90-21 and the rear is 130/80-17 . The entire package is supported by the frame, Tubular, Semi-Double Cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Two-piston calipers. ABS. front brakes and Single disc. Single piston. ABS.. rear brakes. The Kawasaki KLR 650 Traveller was launched in 2022, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
