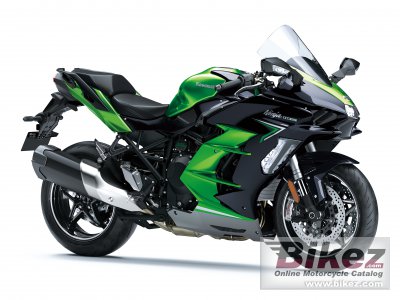

2022 Kawasaki Ninja H2 SX SE Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2022 Kawasaki Ninja H2 SX SE.

Basic Specs

Kawasaki Ninja H2 SX SE
Year2022
MakeKawasaki
ModelKawasaki Ninja H2 SX SE
CostUS$ 27500. MSRP depends on country, taxes, accessories, etc.

Engine

Displacement998.0 ccm (60.90 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression11.2:1
Bore/Stroke76.0 x 55.0 mm (3.0 x 2.2 inches)
Valves/Cylinder4
FuelingInjection. DFI® with 40mm throttle bodies (4) with dual injection. Kawasaki Supercharger.
IgnitionDigital
Exhaust
LubricationForced lubrication, wet sump with oil cooler
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet multi-disc, manual
DrivelineSealed chain

Performance

Horespower197.0 HP (143.8 kW)
Torque137.0 Nm (14.0 kgf-m or 101.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.99 litres/100 km (16.7 km/l or 39.27 mpg)
Fuel Capacity19.00 litres (5.02 US gallons)
Emissions139.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTrellis, high-tensile steel with Swingarm Mounting Plate
Rake24.7 deg
Trail103 mm (4.1 inches)
Front Suspension43mm inverted fork with KECS-controlled rebound and compression damping, manual spring preload adjustability and top-out springs/
Front Travel119 mm (4.7 inches)
Rear SuspensionUni-Trak®, BFRC gas charged shock with piggyback reservoir, KECS-controlled compression and rebound damping electronically-adjustable spring preload
Rear Travel140 mm (5.5 inches)
Seat
Seat Height835 mm (32.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1205 mm (47.4 inches)
Total Length2174 mm (85.6 inches)
Total Width775 mm (30.5 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1481 mm (58.3 inches)
Dry Weight
Wet Weight268.0 kg (590.9 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/55-ZR17
Front BrakesDouble disc. Floating discs. 4-piston. ABS.
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. 2-piston. ABS.
Rear Brake Diameter250 mm (9.8 inches)
Wheels

Comments

It appears you're interested in specifications for the Kawasaki Ninja H2 SX SE. This Sport touring model is powered by a In-line four, four-stroke engine with 998.0 ccm (60.90 cubic inches) of actual displacement before 11.2:1 compression. Fueling is metered via Injection. DFI® with 40mm throttle bodies (4) with dual injection. Kawasaki Supercharger. allowing this machine to produce its 197.0 HP (143.8 kW) horsepower and 137.0 Nm (14.0 kgf-m or 101.0 ft.lbs) torque. According to our records engine heat of the Kawasaki Ninja H2 SX SE is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/55-ZR17 . The entire package is supported by the frame, Trellis, high-tensile steel with Swingarm Mounting Plate. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Floating discs. 4-piston. ABS. front brakes and Single disc. 2-piston. ABS. rear brakes. The Kawasaki Ninja H2 SX SE was launched in 2022, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Advanced Rider Assist System. Blind spot monitoring. Forward collision warnings. Tire Pressure Monitoring System. Grip heaters.
