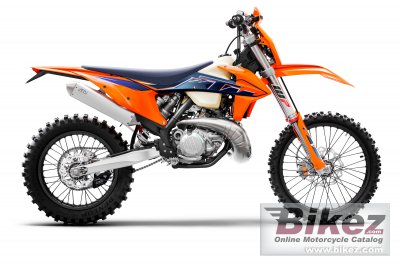

These are the known mechanical and performance specifications for your 2022 KTM 250 XC-W TPI.
Basic Specs
Year2022
MakeKTM
ModelKTM 250 XC-W TPI
TypeEnduro / offroad
CostUS$ 10199. MSRP depends on country, taxes, accessories, etc.
Engine
Displacement249.0 ccm (15.19 cubic inches)
TypeReed intake.
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke66.4 x 72.0 mm (2.6 x 2.8 inches)
Valves/Cylinder
FuelingInjection
IgnitionContinental EMS
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final Drive
ClutchWet multi-disc clutch, Brembo hydraulics
DrivelineX-Ring 5/8 x 1/4´ chain
Fuel Economy & Polution
Fuel Consumption2.55 litres/100 km (39.2 km/l or 92.24 mpg)
Fuel Capacity9.00 litres (2.38 US gallons)
Emissions59.2 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeCentral double-cradle-type 25CrMo4 steel
Rake26.5 deg
Trail
Front SuspensionWP XPLOR-USD, Ø 48 mm
Front Travel300 mm (11.8 inches)
Rear SuspensionWP Xplor PDS shock absorber
Rear Travel310 mm (12.2 inches)
Seat
Seat Height960 mm (37.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance370 mm (14.6 inches)
Wheelbase1482 mm (58.3 inches)
Dry Weight103.4 kg (228.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
Comments
