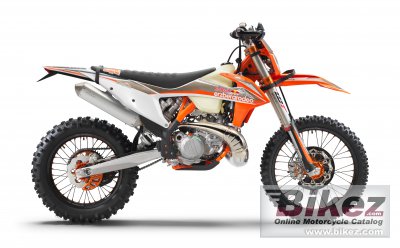

2022 KTM 300 EXC TPI Erzbergrodeo Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2022 KTM 300 EXC TPI Erzbergrodeo.

Basic Specs

KTM 300 EXC TPI Erzbergrodeo
Year2022
MakeKTM
ModelKTM 300 EXC TPI Erzbergrodeo
Cost

Engine

Displacement293.2 ccm (17.89 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke72.0 x 72.0 mm (2.8 x 2.8 inches)
Valves/Cylinder
FuelingInjection
IgnitionContinental EMS
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final Drive
ClutchWet, DDS multi-disc clutch, Brembo hydraulics
Driveline14:50 (13:50). Primary drive: 26:72.

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption2.79 litres/100 km (35.8 km/l or 84.31 mpg)
Fuel Capacity9.00 litres (2.38 US gallons)
Emissions64.7 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeCentral double-cradle-type 25CrMo4 steel
Rake26.5 deg
Trail
Front SuspensionWP XPLOR-USD, Ø 48 mm
Front Travel300 mm (11.8 inches)
Rear SuspensionWP-PDS Monoshock
Rear Travel310 mm (12.2 inches)
Seat
Seat Height960 mm (37.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance370 mm (14.6 inches)
Wheelbase1482 mm (58.3 inches)
Dry Weight103.9 kg (229.1 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre1.60-21
Rear Tire/Tyre2.15-18
Front BrakesSingle disc. Brake calipers on floating bearings
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Brake calipers on floating bearings
Rear Brake Diameter220 mm (8.7 inches)
WheelsCNC machined hubs and high-end Giant rims

Comments

It appears you're interested in specifications for the KTM 300 EXC TPI Erzbergrodeo. This Enduro / offroad model is powered by a Single cylinder, two-stroke engine with 293.2 ccm (17.89 cubic inches) of actual displacement before compression. Fueling is metered via Injection allowing this machine to produce its horsepower and torque. According to our records engine heat of the KTM 300 EXC TPI Erzbergrodeo is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 1.60-21 and the rear is 2.15-18 . The entire package is supported by the frame, Central double-cradle-type 25CrMo4 steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Brake calipers on floating bearings front brakes and Single disc. Brake calipers on floating bearings rear brakes. The KTM 300 EXC TPI Erzbergrodeo was launched in 2022, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
