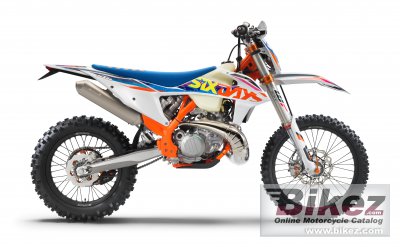

These are the known mechanical and performance specifications for your 2022 KTM 300 EXC TPI Six Days.
Basic Specs
Engine
Displacement293.0 ccm (17.88 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke72.0 x 72.0 mm (2.8 x 2.8 inches)
Valves/Cylinder
FuelingInjection
IgnitionContinental EMS
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final Drive
ClutchWet, DDS multi-disc clutch, Brembo hydraulics
DrivelineX-Ring 5/8 x 1/4´ chain
Fuel Economy & Polution
Fuel Consumption2.79 litres/100 km (35.8 km/l or 84.31 mpg)
Fuel Capacity9.00 litres (2.38 US gallons)
Emissions64.7 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeChrome-molybdenum steel central-tube frame
Rake26.5 deg
Trail
Front SuspensionWP-USD Xplor 48 with preload adjuster
Front Travel300 mm (11.8 inches)
Rear SuspensionWP Xplor PDS shock absorber
Rear Travel310 mm (12.2 inches)
Seat
Seat Height960 mm (37.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance370 mm (14.6 inches)
Wheelbase1482 mm (58.3 inches)
Dry Weight103.9 kg (229.1 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre1.60-21
Rear Tire/Tyre2.15-18
Front BrakesSingle disc. Brembo 2-piston floating caliper
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. Brembo single-piston floating calliper, brake disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
